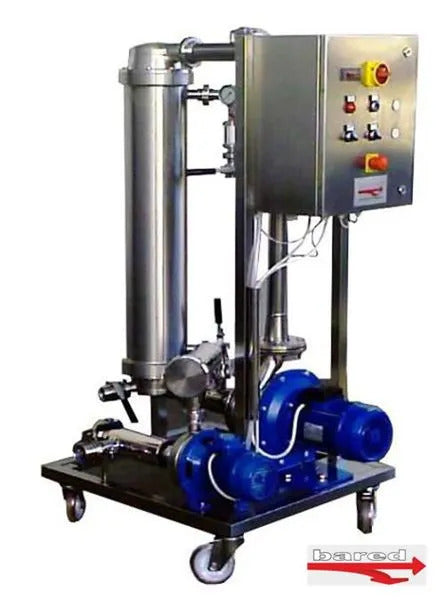

Bared Crossflow filters

Bared Crossflow filters

Enquire Online

Vigo is the UK agent for Bared. Bared have specialised in membrane technologies for the drinks industry for over 30 years and employ a team of highly skilled crossflow filtration specialists.

Bared's B range of cross flow filters are suitable for filtering wine, cider, and some other drinks. See the Features tab below for more information on cross flow filtration.

  • Models available with flow rates from 700 up to 10,400 litres per hour - see Specification
  • Double AISI 304 stainless steel pre-filter with stainless steel pleated cartridge
  • Filtering modules with stainless steel housings and capillary polymeric (PP) membranes of 0.2 micron nominal pore size
  • Centrifugal feeding pump, AISI 304 stainless steel
  • Stainless steel recirculation pump, AISI 316 stainless steel
  • Automatic back wash system operated by counter current pumping device
  • Filtrate flow meter, observation glass, rates regulation valve, sample tap and pressure gauge
  • Safety pressure switch device and working pressure gauges on loop section
  • CIP system consists of double water pre-filter disposable polypropylene cartridge with pressure gauge and stainless steel buffer tank on wheels
  • Control panel functions: recirculation pump, feeding pump, actuate valve, back-flushing settings, and thermometer/thermostatic device with alarm set point
  • Stainless steel finishing: Internal surfaces 2B, polished; External surfaces, pipes & accessories, mirror polished or 2B
  • AISI 304 stainless steel frame on wheels
  • All pipework AISI 304 stainless steel

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your filtration requirements.

See the 'Bared' tab (below) for customer Case Studies.

Ā

Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

Vigo is the UK agent for Bared. Bared have specialised in membrane technologies for the drinks industry for over 30 years and employ a team of highly skilled crossflow filtration specialists.

Bared's B range of cross flow filters are suitable for filtering wine, cider, and some other drinks. See the Features tab below for more information on cross flow filtration.

  • Models available with flow rates from 700 up to 10,400 litres per hour - see Specification
  • Double AISI 304 stainless steel pre-filter with stainless steel pleated cartridge
  • Filtering modules with stainless steel housings and capillary polymeric (PP) membranes of 0.2 micron nominal pore size
  • Centrifugal feeding pump, AISI 304 stainless steel
  • Stainless steel recirculation pump, AISI 316 stainless steel
  • Automatic back wash system operated by counter current pumping device
  • Filtrate flow meter, observation glass, rates regulation valve, sample tap and pressure gauge
  • Safety pressure switch device and working pressure gauges on loop section
  • CIP system consists of double water pre-filter disposable polypropylene cartridge with pressure gauge and stainless steel buffer tank on wheels
  • Control panel functions: recirculation pump, feeding pump, actuate valve, back-flushing settings, and thermometer/thermostatic device with alarm set point
  • Stainless steel finishing: Internal surfaces 2B, polished; External surfaces, pipes & accessories, mirror polished or 2B
  • AISI 304 stainless steel frame on wheels
  • All pipework AISI 304 stainless steel

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your filtration requirements.

See the 'Bared' tab (below) for customer Case Studies.

Ā

Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

View full details

Vigo is the UK agent for Bared. Bared have specialised in membrane technologies for the drinks industry for over 30 years and employ a team of highly skilled crossflow filtration specialists.

Bared's B range of cross flow filters are suitable for filtering wine, cider, and some other drinks. See the Features tab below for more information on cross flow filtration.

  • Models available with flow rates from 700 up to 10,400 litres per hour - see Specification
  • Double AISI 304 stainless steel pre-filter with stainless steel pleated cartridge
  • Filtering modules with stainless steel housings and capillary polymeric (PP) membranes of 0.2 micron nominal pore size
  • Centrifugal feeding pump, AISI 304 stainless steel
  • Stainless steel recirculation pump, AISI 316 stainless steel
  • Automatic back wash system operated by counter current pumping device
  • Filtrate flow meter, observation glass, rates regulation valve, sample tap and pressure gauge
  • Safety pressure switch device and working pressure gauges on loop section
  • CIP system consists of double water pre-filter disposable polypropylene cartridge with pressure gauge and stainless steel buffer tank on wheels
  • Control panel functions: recirculation pump, feeding pump, actuate valve, back-flushing settings, and thermometer/thermostatic device with alarm set point
  • Stainless steel finishing: Internal surfaces 2B, polished; External surfaces, pipes & accessories, mirror polished or 2B
  • AISI 304 stainless steel frame on wheels
  • All pipework AISI 304 stainless steel

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your filtration requirements.

See the 'Bared' tab (below) for customer Case Studies.

Ā

Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

Bared cross-flow filters can be used as a sterilisation unit to block fermentation or as a filtration unit. The following applications are ideal for cross-flow filtration:

  • Obtain clear products (turbidity <1 NTU) from turbid cider and wines which are normally too difficult or time-consuming to treat using the conventional filtration method.
  • Single filtration step of wine & cider
  • Production of wines and other drinks with sugar residue
  • Prevention of malolactic fermentation
  • Improved tartrate stability
  • Filtration of sparkling wines

Ā

Models available*:

B1

  • Power: 1.2 kW
  • Flow: 700 litre/hour
  • Min capacity: 90 HL/day
  • Max capacity: 140 HL/day
  • Weight: 210 kg
  • Dimensions: Length 800 x Width 900 x Height 1600 mm

B2

  • Power: 2.5 kW
  • Flow: 1300 litre/hour
  • Min capacity: 180 HL/day
  • Max capacity: 350 HL/day
  • Weight: 280 kg
  • Dimensions: Length 1000 x Width 1000 x Height 1700 mm

B3

  • Power: 3.5 kW
  • Flow: 2000 litre/hour
  • Min capacity: 270 HL/day
  • Max capacity: 5000 HL/day
  • Weight: 350 kg
  • Dimensions: Length 1800 x Width 1000 x Height 1700 mm

B4

  • Power: 4.5 kW
  • Flow: 2600 litre/hour
  • Min capacity: 360 HL/day
  • Max capacity: 700 HL/day
  • Weight: 500 kg
  • Dimensions: Length 2000 x Width 1500 x Height 1700 mm

B6

  • Power: 6 kW
  • Flow: 4000 litre/hour
  • Min capacity: 540 HL/day
  • Max capacity: 1000 HL/day
  • Weight: 600 kg
  • Dimensions: Length 1800 x Width 1500 x Height 1700 mm

B8

  • Power: 9kW
  • Flow: 5200 litre/hour
  • Min capacity: 720 HL/day
  • Max capacity: 1400 HL/day
  • Weight: 750 kg
  • Dimensions: Length 2300 x Width 1500 x Height 1800 mm

B12

  • Power: 13 kW
  • Flow: 7800 litre/hour
  • Min capacity: 1100 HL/day
  • Max capacity: 2000 HL/day
  • Weight: 1100 kg
  • Dimensions: Length 2300 x Width 2100 x Height 1800 mm

B16

  • Power: 18 kW
  • Flow: 10400 litre/hour
  • Min capacity: 1450 HL/day
  • Max capacity: 2600 HL/day
  • Weight: 1400 kg
  • Dimensions: Length 2300 x Width 2500 x Height 1800 mm

(*) NB Filtration rates and cycles of filtration are dependent on solids content and type (i.e., colloids, bacteria, yeasts).
