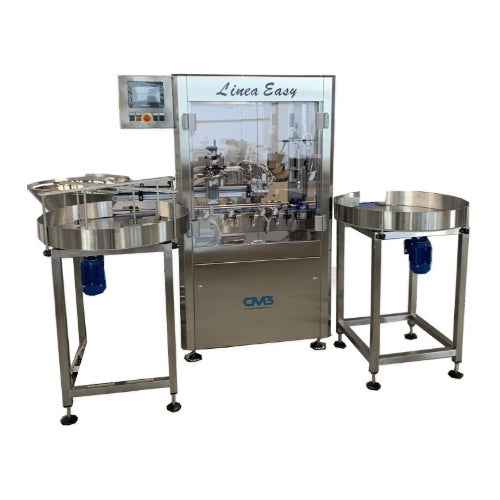

CM3 EASY LINE Dosing & Capping Systems
CM3 EASY LINE Dosing & Capping Systems
The EASY line represents the ideal solution for the dosing and capping automation process in cases where there is a need to have a streamlined, versatile and small-sized system to start or improve the production process of one or more products.
It is suitable for handling liquid, semi-dense or dense products in glass or plastic jars with wide application in the food&beverage, cosmetic and chemical sector.
FUNCTIONS
The machine is equipped with a control panel with dedicated touch screen through which it is possible to set the processing recipes, adjust the operating speed, activate the washing cycle and manage all the main functions. The system can be created with the predisposition for interconnection to the IT-company-system.
VERSIONS
Designed to minimise overall dimensions, it is also a modular solution as it can be created both in the basic version, with the manual loading of the caps resting on the transport belt by the operator, up to the full automatic version with the insertion of the rotary tables the vibrating orientator for serving the caps to the line.
TECHNICAL SPECIFICATIONS
Basic Version
- Dimensions -Â Length: 2.000 mm, Height: 1.785 mm, Width: 600 mm
- Production speed - Up to 900 pcs/h based on the format
Full Automatic Version
- Dimensions -Â Length: 2.800 mm, Height: 1.785 mm, Width: 1.700 mm
-
Production speed - Up to 1.800 pcs/h based on the format
Both Versions
- Bottle measurements - Length: up to 100 mm, Height: up to 350 mm
- Type of caps - Twist off – plastic screw caps – dispenser – flip top – pressure cap - other caps to evaluate
-
Dosing versions (ml)Â - Volumetric Pump from 0 to 5.000 with range chosen based on the project, Peristaltic pump - Single screw pump up to 30 litres
