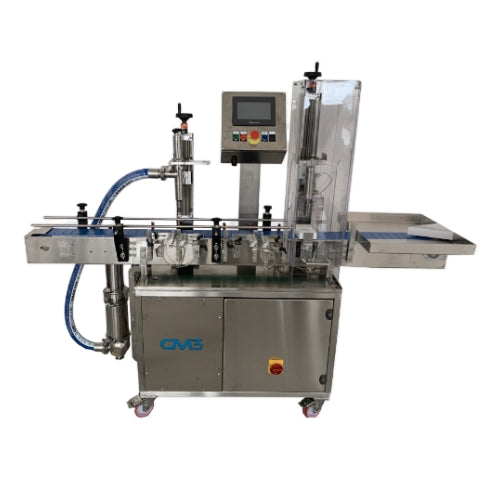

CM3 START&CAPPING Dosing & Capping Systems
CM3 START&CAPPING Dosing & Capping Systems
START&CAPPING was born from the union of the START version and the CAPPING version and represents the ideal solution for small laboratories or newcos, which do not have large needs in terms of hourly production but which intend to combine the dosing and capping of liquid, semi-dense and dense products in a single system, with different formats.
It is designed to reduce overall dimensions to a minimum and to facilitate format change operations.
FUNCTIONS
The container is loaded manually by the operator into the appropriate loading section of the rotary table which is supplied with a diameter of 1,000 mm in the standard version and with a diameter of 1,200 mm in the special application. The direction of rotation of the table allows the automatic conveyance of the container into the dosing station via special gates and detection sensors.
The dosing station is equipped with a volumetric dispenser made of stainless steel and capable of managing the filling of a variety of products even at temperatures up to 120°.
It is also possible to provide a conical hopper for loading products up to 30 litres. In the unloading section, the container filled with the product is conveyed to the transport belt where the operator manually places the cap before entering the capping station.
The capping unit, covered by polycarbonate protections, is composed of sensors and opening and closing gates and a pneumatic or electropneumatic capping head adjustable in height using a numerical handwheel.
At the end of the line there is a 400×400 mm accumulation tray in the standard version or a rotating table which can be supplied in different sizes.
TECHNICAL SPECIFICATIONS
- Dimensions - Length: 2.000 mm x Height: 1.350 mm x Width: 1.270 mm
- Production speed -Â Up to 900 pcs/h based on the format and the product to be treated
- Bottle measurements - Length: up to 100 mm. Height: up to 350 mm
- Type of caps - Twist off – plastic screw caps – dispenser – flip top – pressure cap -  other caps to evaluate
- Dosing versions (ml) - Volumetric Pump from 0 to 1.500 with range chosen based on the project. Peristaltic pump
