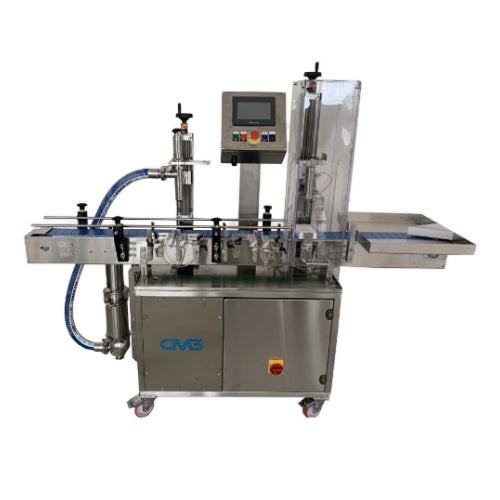

CM3 START LINE Dosing & Capping Station
CM3 START LINE Dosing & Capping Station
START LINE is an automatic line suitable for packaging liquid and dense products that finds wide application in the food and cosmetic sectors for its ability to be adaptable to the different formats of containers and caps and for its ease of management. The separation of the dosing station and the capping station allows to create an operator space for the manual placement of the cap, thus proving to be very appreciated by all companies that need to produce a multiplicity of products with different containers and caps.
The format change occurs quickly through simple manual adjustments that allow to adapt the stations to the new container.
FUNCTIONS
The empty container is transported to the dosing station which can be equipped with up to two dispensing nozzles with the possibility of also providing immersion dosing for foaming and high-temperature products.
The operator station, in front of the touch screen control panel, is equipped with a cap tray for collecting and positioning the caps on the neck of the container.
The capping station, with special polycarbonate protections, concludes the packaging process by closing the cap using special spindles or custom solutions capable of managing a variety of commercially available caps.
It is possible to provide for the insertion of a rotating table at the beginning of the line for loading the containers.
TECHNICAL SPECIFICATIONS
- Dimensions -Â Length: 2.000 mm x Height: 1.700 mm x Width: 560 mm
-
Production speed - Up to 1.200 pcs/h based on the format and the product to be treated*
* version with 2 volumetric pump - Bottle measurements - Length: up to 100 mm, Height: up to 350 mm
- Type of caps - Twist off – plastic screw caps – dispenser – flip top – pressure cap -  other caps to evaluate
- Dosing versions (ml) - Volumetric Pump from 0 to 5.000 with range chosen based on the project. Peristaltic pump. Single screw pump up to 30 litres
Â
