Amazon 72 Series 10" stainless steel C7 filter housing

Amazon 72 Series 10" stainless steel C7 filter housing

95374

£1,100.00 GBP
£1,100.00 GBP
Sale Awaiting Stock - Click to Enquire
Shipping calculated at checkout.

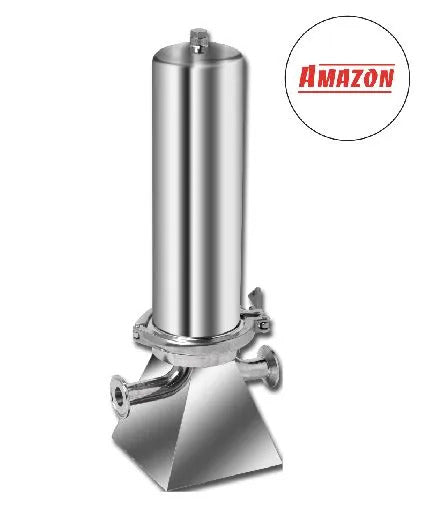

This 72 Series 10" code 7 (C7) stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon SupaPore FPW or the appropriate SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 10" SupaPore FPW Code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 10" SupaPore VPW Code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 10" (pre-membrane) C7 Filter Cartridge(part code 95455 - available separately) or the Amazon SupPore VPW 10" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95456 - available separately)
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

This 72 Series 10" code 7 (C7) stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon SupaPore FPW or the appropriate SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 10" SupaPore FPW Code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 10" SupaPore VPW Code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 10" (pre-membrane) C7 Filter Cartridge(part code 95455 - available separately) or the Amazon SupPore VPW 10" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95456 - available separately)
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

View full details

This 72 Series 10" code 7 (C7) stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon SupaPore FPW or the appropriate SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 10" SupaPore FPW Code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 10" SupaPore VPW Code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 10" (pre-membrane) C7 Filter Cartridge(part code 95455 - available separately) or the Amazon SupPore VPW 10" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95456 - available separately)
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

  • Standard single open end cartridge fitting, using Bayonet lock code 7 for forward & reverse flow
  • PED & ATEX compliant
  • Rated at full vacuum and 10 bar g in liquid and gases (see Specification)
  • Houses 1 x Amazon 10" (250mm) SupaPore FPW code 7 cartridge (available separately - see main description) or 1 x Amazon 10" (251mm) SupaPore VPW code 7 (available separately - see main description)
  • Body & closure: 316L stainless steel
  • Stainless steel finish: 0.8 Ra internal polish + electropolish
  • Clamp: 304 stainless steel
  • Volume: 2.6 litres
  • Temperature range: -10°C / 150°C
  • Pressure range: Liquid FV / 10 bar g; Gas Group 1 & 2 FV 10/bar g
  • Inlet/outlet: I" Tri Clamp
  • Vent: ¼ BSPF
  • Seal: Silicone
  • Total dimensions: length including stand 505 x diameter 195
  • See product specification sheet in Downloads tab for full details



Amazon Filters is Europe's leading manufacturer's of filtration solutions.

Here are some of the reasons why we choose Amazon Filters:

  • Their reputation
  • They provide one the widest selection of filtration vessels, depth filters and pleated cartridges available today
  • Production, R&D, and design functions are all located at their UK head office in Camberley
  • Their filters are manufactured in clean room conditions using materials that meet Food Contact requirements
  • Amazon is accredited to ISO9001;2015 by one of the world's most prestigious and respected accreditation bodies, the British Standards Institute
  • Their cartridges are manufactured under strict control with batch number identification, giving full traceability on all components
  • All their products come with detailed Product Validation Guides and Technical Support documentation
  • Many of their filters can be regenerated using hot water or a variety of chemical treatments to ensure production costs are minimised

Company Development:

Amazon Filters was founded in 1985 by Mike Pizzey, an engineer with nearly 20 years previous filtration experience. The company now employs over 220 staff and is a renowned UK provider of optimum filtration solutions for liquid and gas process filtration, with subsidiaries in Germany and Poland. Amazon Filters design and manufacture filter housings and filter elements for liquid and gas process filtration.

The Range

The Amazon filter range include filter housings and filter cartridges and bags for a range of different filtration applications, including:

  • High debris removal - Series 81 housings compatible used with DuoLine Mini Filter bags
  • Pre-filter sediment removal - Series 28 housings used with SupaGard cartridges; Series 51 housings used with SupaGard cartridges
  • Pre-membrane filtration - Series 72 housings used with SupaPore FPW cartridges
  • Membrane filtration for sterile - Series 72 housings used with SupaPore VPW cartridges
  • Sediment removal/polishing - Series 51 housings used with SupaSpun II cartridges

Please note, the Amazon Filters range is vast in its entirity* and for those new to Amazon Filters it can be a challenge to determine which filter is suitable for a particular application -if you need some adviceplease do not hesitate to call us on 01404 892 100 - we are more than happy to help.

(*) Please note, we don't list all the filters in their range on our website, but we can supply any of their filters [NB if you require filter cartridges which we don't routinely keep in stock a minimum order quantity may apply.]

Amazon Filters Video

Watch the Amazon Filters video here.

What we offer

As an Amazon Filters' distributor, we can offer you ...

  • Advice on the appropriate filter for you - taking product and desired outcomes into consideration
  • Advice on the appropriate fittings required to connect in-line
  • A single filter or the assembly of full cartridge filtration systems by our team of multi-skilled Vigo engineers - for an example of a basic assembly, please see here
  • Comprehensive 12 month warranty, backed up by our engineers
  • Full technical backup

Case Studies

Over the years, in addition to supplying standard single cartridge filters, we've assembled multiple full (bespoke) cartridge filtration systems, e.g., for filtration prior to automated bottling filling and kegging systems. Please ask us about our most recent project.

How can we help you?

If you're looking for a filter or fill filtration system, please give us a call on 01404 892 100 and we will be happy to discuss your requirements.
