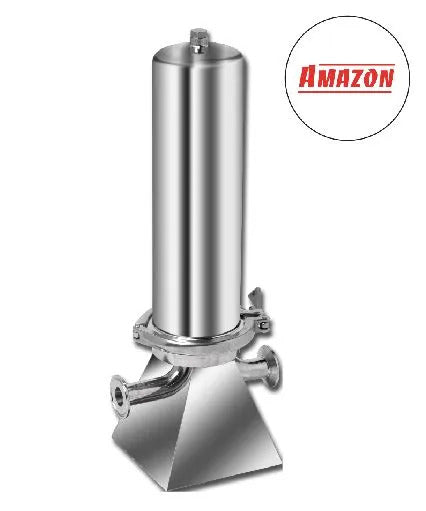

Amazon 72 Series 30" stainless steel C7 filter housing

Amazon 72 Series 30" stainless steel C7 filter housing

Enquire Online

This 72 Series 30" code 7 (C7) single stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon 30" SupaPore FPW Code 7 or the appropriate Amazon 30" SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 30" SupaPore FPW code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 30" SupaPore VPW code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 30" Absolute Pleated (Pre-membrane) C7 Filter Cartridge (part code 95354 - available separately) or the Amazon SupaPore VPW 30" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95355 - available separately) featured below
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

This 72 Series 30" code 7 (C7) single stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon 30" SupaPore FPW Code 7 or the appropriate Amazon 30" SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 30" SupaPore FPW code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 30" SupaPore VPW code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 30" Absolute Pleated (Pre-membrane) C7 Filter Cartridge (part code 95354 - available separately) or the Amazon SupaPore VPW 30" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95355 - available separately) featured below
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

View full details

This 72 Series 30" code 7 (C7) single stainless steel filter housing is manufactured by renowned Amazon Filters and is part of their sanitary range of housings. It accepts the appropriate Amazon 30" SupaPore FPW Code 7 or the appropriate Amazon 30" SupaPore VPW filter cartridge (available separately, see below).

  • Ideal for pre-membrane filtration when used with the 30" SupaPore FPW code 7 filter cartridge (available separately - see below) - pre-membrane filtration helps protect the membrane filter from debris
  • Ideal for membrane filtration in order to achieve the sterile filtration of product when used with the 30" SupaPore VPW code 7 filter cartridge (available separately - see below) - typically membrane filtration is carried out pre bottling/kegging/canning
  • Part of Amazon's 'hygienic' range of housings
  • No loose internal components
  • Base mounted so free standing to allow easy access to all internal areas & facilitate the general cleanliness of the process system in which the filter is to operate
  • No loose internal components for trouble free operation
  • T style construction with a high spec hygienic finish, electropolished inside & out
  • Quick release Vee Clamp closure for easy opening
  • Lightweight, high specification investment cast head
  • Accepts the Amazon SupaPore FPW 30" Absolute Pleated (Pre-membrane) C7 Filter Cartridge (part code 95354 - available separately) or the Amazon SupaPore VPW 30" Absolute Membrane (Sterile) C7 Filter Cartridge (part code 95355 - available separately) featured below
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.

Please note, for filtering large volumes of product we build and supply Filter Housing Assemblies (multiple housings mounted on a stand). Please call us on 01404 892 100 to discuss these.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

  • Standard single open end cartridge fitting, using Bayonet lock code 7 for forward & reverse flow
  • PED & ATEX compliant
  • Rated at full vacuum and 10 bar g in liquid and 7 or 10 bar g for gases, depending on gas type (see Specification)
  • Houses 1 x Amazon 30" (769mm) SupaPore FPW code 7 cartridge (available separately - see main description) or 1 x Amazon 30" (757mm) SupaPore VPW code 7 (available separately - see main description)
  • Body & closure: 316L stainless steel
  • Stainless steel finish: 0.8Ra internal polish + electropolish
  • Clamp: 304 stainless steel
  • Volume: 6.6 litres
  • Temperature range: -10°C / 150°C
  • Pressure range: Liquid FV / 10 bar g; Gas Group 1 FV / 7 bar g; Gas Group 2 FV 10 / bar g
  • Inlet/outlet: I" Tri Clamp
  • Vent: ¼ BSPF
  • Seal: Silicone
  • Total dimensions: length including stand 1015 x diameter 195
  • See product specification sheet in Downloads tab for full details
