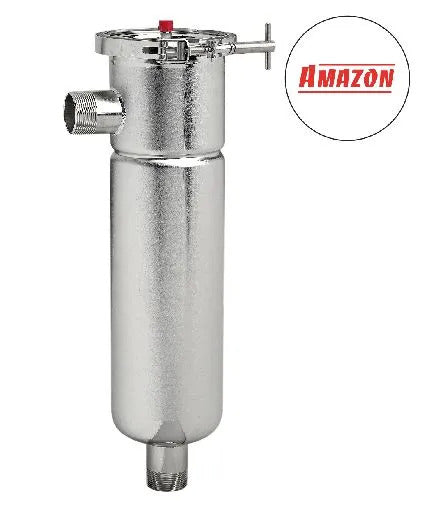

Amazon 81 Series stainless steel filter housing for Mini filter bag

Amazon 81 Series stainless steel filter housing for Mini filter bag

95961

£665.00 GBP
£665.00 GBP
Sale Awaiting Stock - Click to Enquire
Shipping calculated at checkout.

The 81 Series single stainless steel filter housing is manufactured by renowned Amazon Filtration and is designed to house the Amazon 4¼" DuoLine Mini Bags that we supply (available separately, see below.)

  • The ideal choice to replace conventional cast stainless steel strainers
  • Ideal for high debris removal of for infused products, such as gin or tea, or products with high particle load, when used with the 4¼" DuoLine Mini Bags (available separately, see below)
  • Can also be used for pre-filter debris removal, when used with the DuoLine mini bag (available separately) filtered below
  • Side inlet and bottom outlet configuration facilitate easy access (only the basket to remove) and efficient cleaning
  • Lightweight top opening style
  • Quick release Vee Clamp closure for easy opening
  • Accepts the Amazon DuoLine Mini Filter Bags (Coarse)- part codes 95981, 95979 & 95980, available separately
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

PLEASE NOTE: This product is currently on backorder.

The 81 Series single stainless steel filter housing is manufactured by renowned Amazon Filtration and is designed to house the Amazon 4¼" DuoLine Mini Bags that we supply (available separately, see below.)

  • The ideal choice to replace conventional cast stainless steel strainers
  • Ideal for high debris removal of for infused products, such as gin or tea, or products with high particle load, when used with the 4¼" DuoLine Mini Bags (available separately, see below)
  • Can also be used for pre-filter debris removal, when used with the DuoLine mini bag (available separately) filtered below
  • Side inlet and bottom outlet configuration facilitate easy access (only the basket to remove) and efficient cleaning
  • Lightweight top opening style
  • Quick release Vee Clamp closure for easy opening
  • Accepts the Amazon DuoLine Mini Filter Bags (Coarse)- part codes 95981, 95979 & 95980, available separately
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

View full details

The 81 Series single stainless steel filter housing is manufactured by renowned Amazon Filtration and is designed to house the Amazon 4¼" DuoLine Mini Bags that we supply (available separately, see below.)

  • The ideal choice to replace conventional cast stainless steel strainers
  • Ideal for high debris removal of for infused products, such as gin or tea, or products with high particle load, when used with the 4¼" DuoLine Mini Bags (available separately, see below)
  • Can also be used for pre-filter debris removal, when used with the DuoLine mini bag (available separately) filtered below
  • Side inlet and bottom outlet configuration facilitate easy access (only the basket to remove) and efficient cleaning
  • Lightweight top opening style
  • Quick release Vee Clamp closure for easy opening
  • Accepts the Amazon DuoLine Mini Filter Bags (Coarse)- part codes 95981, 95979 & 95980, available separately
  • 316L stainless steel

NB If you are in any doubt about which filter to choose for your application, please call us on 01404 892 100 for advice.



Please see Filters in Catalogue for our full range of filters.

Please see Filtration Media for our full range of filters cartridges, sheets, bags & socks.

  • Integral vent to aid efficient filter changeout
  • Internally and externally electropolished as standard
  • PED & ATEX Complaint
  • Rated at 8.5 bar g liquid
  • Houses 1 x Amazon 4¼" top ring diameter DuoLine mini filter bag (available separately - see main description)
  • Body & closure: 316L stainless steel body
  • Clamp: 304 stainless steel
  • Volume: 2.9 litres
  • Temperature range: -10°C / 110°C
  • Pressure range: Liquid 8.5 bar g
  • Inlet/outlet: I"BSPM
  • Vent: ¼ BSP
  • Seal: EPDM
  • Total dimensions: length 349
  • Distance from centre of vent to inlet end: 115mm
  • See product specification sheet in Downloads tab for full details



Amazon Filters is Europe's leading manufacturer's of filtration solutions.

Here are some of the reasons why we choose Amazon Filters:

  • Their reputation
  • They provide one the widest selection of filtration vessels, depth filters and pleated cartridges available today
  • Production, R&D, and design functions are all located at their UK head office in Camberley
  • Their filters are manufactured in clean room conditions using materials that meet Food Contact requirements
  • Amazon is accredited to ISO9001;2015 by one of the world's most prestigious and respected accreditation bodies, the British Standards Institute
  • Their cartridges are manufactured under strict control with batch number identification, giving full traceability on all components
  • All their products come with detailed Product Validation Guides and Technical Support documentation
  • Many of their filters can be regenerated using hot water or a variety of chemical treatments to ensure production costs are minimised

Company Development:

Amazon Filters was founded in 1985 by Mike Pizzey, an engineer with nearly 20 years previous filtration experience. The company now employs over 220 staff and is a renowned UK provider of optimum filtration solutions for liquid and gas process filtration, with subsidiaries in Germany and Poland. Amazon Filters design and manufacture filter housings and filter elements for liquid and gas process filtration.

The Range

The Amazon filter range include filter housings and filter cartridges and bags for a range of different filtration applications, including:

  • High debris removal - Series 81 housings compatible used with DuoLine Mini Filter bags
  • Pre-filter sediment removal - Series 28 housings used with SupaGard cartridges; Series 51 housings used with SupaGard cartridges
  • Pre-membrane filtration - Series 72 housings used with SupaPore FPW cartridges
  • Membrane filtration for sterile - Series 72 housings used with SupaPore VPW cartridges
  • Sediment removal/polishing - Series 51 housings used with SupaSpun II cartridges

Please note, the Amazon Filters range is vast in its entirity* and for those new to Amazon Filters it can be a challenge to determine which filter is suitable for a particular application -if you need some adviceplease do not hesitate to call us on 01404 892 100 - we are more than happy to help.

(*) Please note, we don't list all the filters in their range on our website, but we can supply any of their filters [NB if you require filter cartridges which we don't routinely keep in stock a minimum order quantity may apply.]
