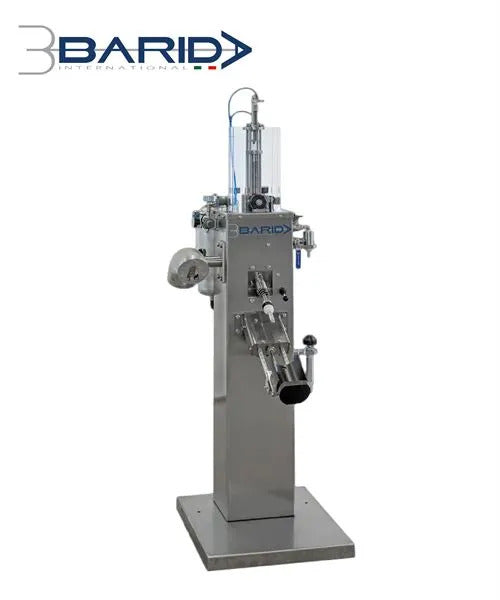

Barida Atlas M semi manual disgorging, dosing & topping up machine

Barida Atlas M semi manual disgorging, dosing & topping up machine

Enquire Online

The Atlas M semi manual machine is manufactured by the renowned Barida International and allows you to rapidly disgorge, dose and top up English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 150 bottles per hour, depending on product and operator
  • Semi manual
  • 3 step process to disgorge (removal of crown cap), add liqueur/syrup (dosage), and level with wine
  • Liqueur tank equipped with compressed air entry, nitrogen inlet and pressure gauge
  • Three-way valve with volumetric cylinder, to adjust liqueur's dose
  • Manual controls for dose adjustment and levelling control
  • Compact unit with stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies .



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap(part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

The Atlas M semi manual machine is manufactured by the renowned Barida International and allows you to rapidly disgorge, dose and top up English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 150 bottles per hour, depending on product and operator
  • Semi manual
  • 3 step process to disgorge (removal of crown cap), add liqueur/syrup (dosage), and level with wine
  • Liqueur tank equipped with compressed air entry, nitrogen inlet and pressure gauge
  • Three-way valve with volumetric cylinder, to adjust liqueur's dose
  • Manual controls for dose adjustment and levelling control
  • Compact unit with stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies .



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap(part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

View full details

The Atlas M semi manual machine is manufactured by the renowned Barida International and allows you to rapidly disgorge, dose and top up English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 150 bottles per hour, depending on product and operator
  • Semi manual
  • 3 step process to disgorge (removal of crown cap), add liqueur/syrup (dosage), and level with wine
  • Liqueur tank equipped with compressed air entry, nitrogen inlet and pressure gauge
  • Three-way valve with volumetric cylinder, to adjust liqueur's dose
  • Manual controls for dose adjustment and levelling control
  • Compact unit with stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies .



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap(part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

Operator manually moves the bottle between stations with functions for:

  1. Removal of the crown cap, forcing out the frozen plug (disgorgement)
  2. Injection of liqueur (dosage) - the bottle is placed on the inclined base, where a set amount of dosage is added from the stainless steel storage tank
  3. Levelling with product - the bottle is then placed under a filling nozzle where it is topped up to the required level



Bottle Requirements

  • Height: min 230 - max 380 (+/-5)
  • Diameter: min 70 - max 113 (+/-52
  • Bottle type: 750ml / 1500ml Champagne

Specification

  • Dimensions: Length 900 x Width 500 x Height 1580 mm
  • Weight: 70 kg
  • Compressed air: 34 litres per hour, min. 6 bar



Barida International was established in 2006 and is well respected in the global wine industry.

Barida was established in Canelli, the historic heart of Italian sparkling wine, recently awarded DOCG status, where Asti first originated. It was this passion for sparkling wine which inspired brothers and founders partners Hicham and Adil Barida to consolidate their experience in the sector and the technical contribution of experienced professionals to design and manufacture equipment for the production of traditional method sparkling wines (also suitable for traditional method sparkling cider).

We chose Barida because they are traditional method equipment specialists and their brand is synonymous with quality and service.

The range

The Barida range covers semi-manual to automatic disgoring, dosage and topping up equipment suitable for traditional method sparkling wine and cider; the monobloc (automatic models) include corking and muzzling function. There is also a Mixer unit for even dosage distribution. All this equipment can be viewed here. Please note, for disgoring & dosage on on much larger scale (1,200 to 1,500 bottles per hour), Barida also supply an automatic meck freezing unit, an automatic disgoring unit, and automatic tribloc for spillaway, dosage and levelling up - these can be linked via conveyor; please contact us for more information on these.

What we offer...

We have been supplying Barida machines since 2010. We can offer you:

  • Advice on the appropriate equipment for you - taking budget, space and desired throughput into consideration
  • Available functions include semi manual through to automatic disgorgement, dosage, topping up, corking and wire muzzle application; automatic mixing post-dosage; automatic neck freezing
  • Supply, installation and commissioning by our team of experienced, multi-skilled Vigo engineers
  • Supply and installation of all conveyoring and all the required controls to ensure automatic lines works safely and efficiently
  • Maintenance and full technical backup from our mobile engineers

Case Studies

We have supplied a good number of Barida machines to producers of sparkling cider & English wine. Please ask us about our recent projects.

How can we help you?

If you're looking to source disgoring and dosage equipment, please call us on 01404 892100 and we will be happy to discuss your requirements.
