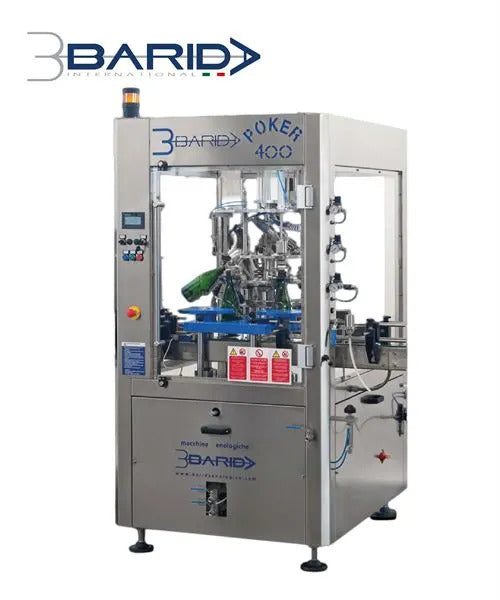

Barida Poker 400 disgorging, dosing & topping up monobloc / tribloc (with corking/muzzling)

Barida Poker 400 disgorging, dosing & topping up monobloc / tribloc (with corking/muzzling)

Enquire Online

The Poker 400 monobloc is manufactured by the renowned Barida International and combines in a single unit the disgorgement, dosage and topping up for English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 400 bottles per hour, depending on product
  • Automatic process
  • Rotary with 6 bottle positions
  • Single turret
  • 4 step process - see Application
  • Inlet bottle neck washing device
  • Automatic adjustable dosage
  • Stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

The Poker 400 can be either operated as a standalone machine with independent conveyor, or inserted into a line, with additional automated corking/wiring, shaking and exterior washing machines.

Alternatively, the Poker 400/1S/1G tribloc, is available which includes a single head corking (for champagne corks) and single head wire muzzle application unit. See Application & Specification.

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies which include Barida equipment.



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap (part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

The Poker 400 monobloc is manufactured by the renowned Barida International and combines in a single unit the disgorgement, dosage and topping up for English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 400 bottles per hour, depending on product
  • Automatic process
  • Rotary with 6 bottle positions
  • Single turret
  • 4 step process - see Application
  • Inlet bottle neck washing device
  • Automatic adjustable dosage
  • Stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

The Poker 400 can be either operated as a standalone machine with independent conveyor, or inserted into a line, with additional automated corking/wiring, shaking and exterior washing machines.

Alternatively, the Poker 400/1S/1G tribloc, is available which includes a single head corking (for champagne corks) and single head wire muzzle application unit. See Application & Specification.

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies which include Barida equipment.



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap (part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

View full details

The Poker 400 monobloc is manufactured by the renowned Barida International and combines in a single unit the disgorgement, dosage and topping up for English / Welsh sparkling wine (traditional method), Champagne (méthode champenoise) and bottle-fermented ciders.

  • Output up to 400 bottles per hour, depending on product
  • Automatic process
  • Rotary with 6 bottle positions
  • Single turret
  • 4 step process - see Application
  • Inlet bottle neck washing device
  • Automatic adjustable dosage
  • Stainless steel (AISI 304) construction
  • See Specification for bottle parameters
  • Optional change parts for different bottle sizes
  • Suitable for sanitizer washdown
  • Requires a compressed air supply

The Poker 400 can be either operated as a standalone machine with independent conveyor, or inserted into a line, with additional automated corking/wiring, shaking and exterior washing machines.

Alternatively, the Poker 400/1S/1G tribloc, is available which includes a single head corking (for champagne corks) and single head wire muzzle application unit. See Application & Specification.

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your disgorging requirements.

See the 'Barida' tab (below) for customer Case Studies which include Barida equipment.



Please see our Champange Corks (part codes 98817 & 91670) & Gold Champagne Wire Muzzles/Cages(part codes 98819 & 91676)/ Silver Champagne Wire Muzzles/Cages With Metal Cap (part codes 98767 & 91167).

Please see Disgorging & Dosage for our range of equipment for disgoring, dosage & riddling.

[Did you know that our sister company, Rawlings, supplies bottles? See Glass Packaging]

Poker 400:

  1. Removal of the crown cap (bottle tilted to 65°) forcing out the frozen plug (disgorgement
  2. Partial emptying of bottle
  3. Injection of liqueur (dosage)
  4. Re-levelling with product

Poker 400/1S/1G:

  1. Removal of the crown cap (bottle tilted to 65°) forcing out the frozen plug (disgorgement)
  2. Partial emptying of bottle
  3. Injection of liqueur (dosage)
  4. Re-levelling with product
  5. Application of mushroom cork
  6. Application of wire cage



Bottle Requirements

  • Height: min 240 - max 380 (+/-5)
  • Diameter: min 70 - max 113 (+/-2)
  • Bottle type: 750ml / 1500ml Champagne

Cork Requirements for Poker 400/1S/1G

  • Champagne (mushroom) cork
  • Max Ø 31mm & height 50mm

Specification

Poker 400

  • 0.98kW
  • 3 phase, 380V, 50 Hz
  • Dimensions: Length 1390 x Width 1680 x Height 2040 mm
  • Weight: 600 kg

Poker 400/1S/1G

  • Corker unit: stainless steel cork chute; polished hardened steel jaws for maximum durability & efficiency; hardened steel cam designed to allow slow cork shrinkage & rapid insertion; cylinder compression 16mm Ø minimum
  • Muzzle applicator unit: 2 interchangeable pipes with capacity of 200 cages each; automatic dispenser; pincer guide positions and keeps bottle in line with eyelet; ensuring maximum concentricity between cork and cage; and maximum adherence of cork to cap
  • 3kW
  • 3 phase, 380V, 50 Hz
  • Dimensions: Length 1445 x Width 3300 x Height 2924 mm
  • Weight: 2400 kg



Barida International was established in 2006 and is well respected in the global wine industry.

Barida was established in Canelli, the historic heart of Italian sparkling wine, recently awarded DOCG status, where Asti first originated. It was this passion for sparkling wine which inspired brothers and founders partners Hicham and Adil Barida to consolidate their experience in the sector and the technical contribution of experienced professionals to design and manufacture equipment for the production of traditional method sparkling wines (also suitable for traditional method sparkling cider).

We chose Barida because they are traditional method equipment specialists and their brand is synonymous with quality and service.

The range

The Barida range covers semi-manual to automatic disgoring, dosage and topping up equipment suitable for traditional method sparkling wine and cider; the monobloc (automatic models) include corking and muzzling function. There is also a Mixer unit for even dosage distribution. All this equipment can be viewed here. Please note, for disgoring & dosage on on much larger scale (1,200 to 1,500 bottles per hour), Barida also supply an automatic meck freezing unit, an automatic disgoring unit, and automatic tribloc for spillaway, dosage and levelling up - these can be linked via conveyor; please contact us for more information on these.

What we offer...

We have been supplying Barida machines since 2010. We can offer you:

  • Advice on the appropriate equipment for you - taking budget, space and desired throughput into consideration
  • Available functions include semi manual through to automatic disgorgement, dosage, topping up, corking and wire muzzle application; automatic mixing post-dosage; automatic neck freezing
  • Supply, installation and commissioning by our team of experienced, multi-skilled Vigo engineers
  • Supply and installation of all conveyoring and all the required controls to ensure automatic lines works safely and efficiently
  • Maintenance and full technical backup from our mobile engineers

Case Studies

We have supplied a good number of Barida machines to producers of sparkling cider & English wine. Please ask us about our recent projects.

How can we help you?

If you're looking to source disgoring and dosage equipment, please call us on 01404 892100 and we will be happy to discuss your requirements.
