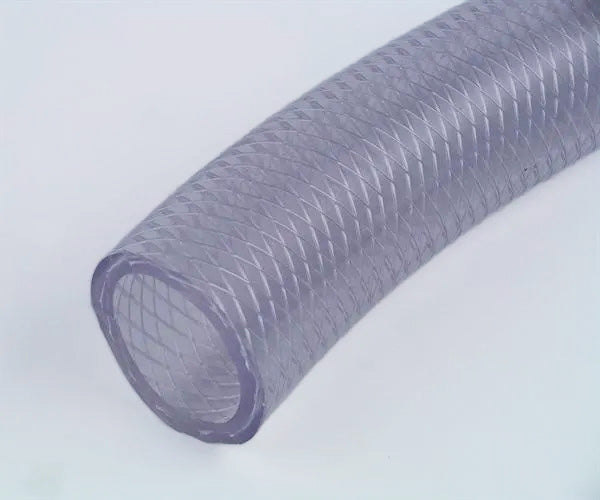

• A Clear PVC hose length
1 1

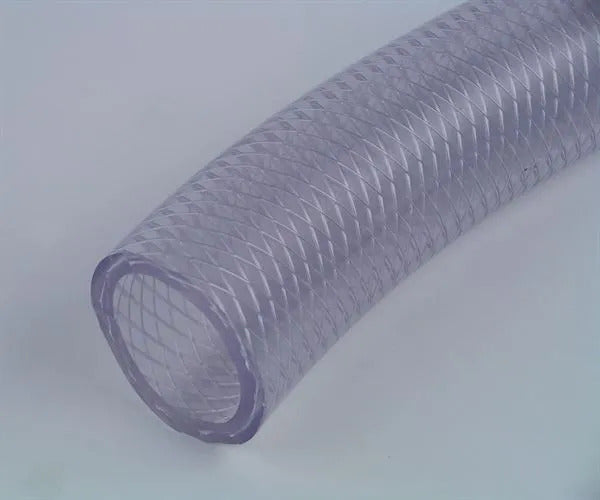

Clear PVC hose with braid reinforcement

Clear PVC hose with braid reinforcement

33205

£22.00 GBP
£22.00 GBP
Sale Awaiting Stock - Click to Enquire
Shipping calculated at checkout.

This is an economical clear PVC braided hose for most routine applications.

  • Fair resistance to kinking and collapse
  • Sold in multiples of 10. For 10 metres please enter as '1' quantity.
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on quantity ordered (a full reel is 30m)

Ideal for use with our Tube/Hose Cleaning Balls.

Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter].

See also Fittings and Hoses.

This is an economical clear PVC braided hose for most routine applications.

  • Fair resistance to kinking and collapse
  • Sold in multiples of 10. For 10 metres please enter as '1' quantity.
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on quantity ordered (a full reel is 30m)

Ideal for use with our Tube/Hose Cleaning Balls.

Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter].

See also Fittings and Hoses.

View full details

This is an economical clear PVC braided hose for most routine applications.

  • Fair resistance to kinking and collapse
  • Sold in multiples of 10. For 10 metres please enter as '1' quantity.
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on quantity ordered (a full reel is 30m)

Ideal for use with our Tube/Hose Cleaning Balls.

Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter].

See also Fittings and Hoses.

  • Not suitable for use under strong suction or at higher temperatures
  • Not suitable for products with an ABV over 20%
  • Temperature : -5 to + 60°C
  • Pressure @ 20°C: 8 bar
  • Not suitable for products with an ABV over 20%

4.7mm (3/16") Ø

  • Hose external diameter : 10 mm
  • Hose wall diameter: 2.65mm
  • Appropriate hoseclip (available separately) part code 57700

5mm (¼") Ø

  • Hose external diameter : 11 mm
  • Hose wall diameter: 3mm
  • Appropriate hoseclip (available separately): part code 57700

10mm (3/8") Ø

  • Hose external diameter : 16 mm
  • Hose wall diameter: 3mm
  • Appropriate hoseclip (available separately): part code 57701

13mm (½") Ø

  • Hose external diameter : 18 mm
  • Hose wall diameter: 2.5mm
  • Appropriate hoseclip (available separately): part code 57701

16mm (5/8") Ø

  • Hose external diameter : 23 mm
  • Hose wall diameter: 3.5mm
  • Appropriate hoseclip (available separately): part code 57702

20mm (¾") Ø

  • Hose external diameter : 26 mm
  • Hose wall diameter: 3mm
  • Appropriate hoseclip (available separately): part code 57703

25mm (1") Ø

  • Hose external diameter : 33.5 mm
  • Hose wall diameter: 4.25mm
  • Appropriate hoseclip (available separately): part code 57704

32mm (1¼") Ø

  • Hose external diameter : 38 mm
  • Hose wall diameter: 3mm
  • Appropriate hoseclip (available separately): part code 57705

38mm (1½") Ø

  • Hose external diameter : 51.5 mm
  • Hose wall diameter: 6.75mm
  • Appropriate hoseclip (available separately): part code 57707

50mm (2") Ø

  • Hose external diameter : 64.5 mm
  • Hose wall diameter: 7.25mm
  • Appropriate hoseclip (available separately): part code 57707
