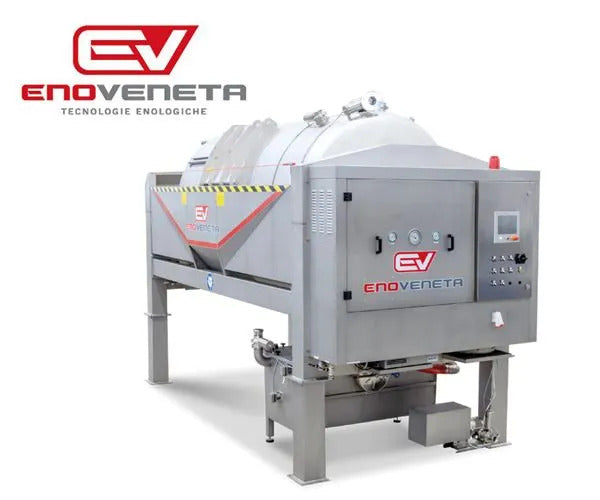

Enoveneta ATMOS N2 pneumatic diaphragm hermetic closed presses
Enoveneta ATMOS N2 pneumatic diaphragm hermetic closed presses
ATMOS N2 wine presses are manufactured by internationally renowned Enoveneta, who have been manufacturing oenological equipment for over 50 years.
Enoveneta horizontal pneumatic wine presses are designed to maximise grape yields, obtain a gentler pressing action, while reducing processing time. The software allows access to programs and pressing cycle optimisation via a 12" display. The membrane extension enables the press to operate at optimal pressure at full and part-full capacity. An internal device gently breaks up the grape pomace.
The ATMOS N2 is suitable for working within an inert atmosphere via a gas cylinder or nitrogen generator, and has one hermetic door.
- Available models: ATMOS 12, 18, 26, 35, 45, 70, 100, 150, 250, 330
- Programmable PLC containing 6 standard programs and 90 free programs
- Manufactured to Industry 4.0 technological standard for: control & management via PLC; remote access from PC, smartphone & tablet; remote diagnostics; interconnection between other Industry 4.0 machines already in the winery - NB Additional router required for connection
- Presses whole grapes, destemmed grapes, and fermented mass
- Large loading hermetic sliding door
- Pressing cylinder with trapezoid shaped draining channels (horizontally aligned against one size of the inner wall; 45% drainage surface of cylinder) designed to minimise the accumulation of lees in the crumbling phase, and circular drains positioned in line which each channel for continuous and maximum draining
- Quick inflation/deflation diaphragm
- Mechanical chain transmission of cylinder for a smoother, gentler rotation
- Stainless steel (AISI 304) construction
- See Application for optional extras
Installed & commissioned by our Engineers.
Please call us on 01404 892100 to discuss your grape pressing requirements.
See the 'Enoveta' tab for our customer Case Studies.
Ā
Please see the Presses - Grape category in Catalogue for our range of grape presses.
Please see the Crushers & Destemmers - Grape category for our range of grape crushers & destemmers.
