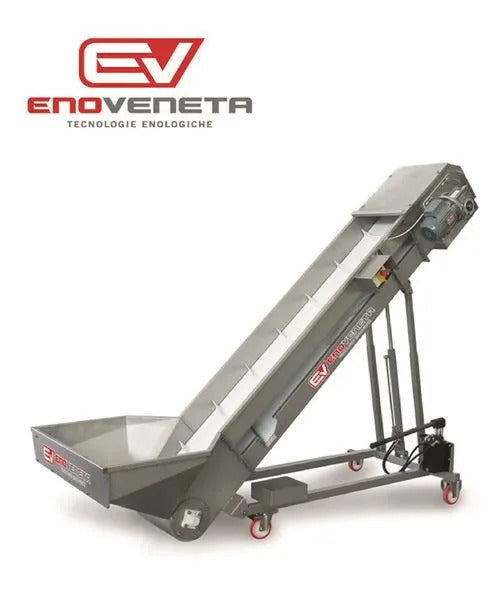

Enoveneta NE 250 elevators

Enoveneta NE 250 elevators

Enquire Online

NE 250 grape elevators are manufactured by internationally renowned Enoveneta, manufacturers of oenological equipment for over 50 years, and are designed for conveying whole or destemmed grapes and fermented marc. They can be used to transfer grapes from bin to destemmer / crusher, sorting table or pneumatic press.

  • Conveying per hour: 2 to 10 tonnes
  • Available elevator lengths 2500, 3000 & 4000mm
  • PVC conveyor belt (250mm wide)
  • Variable discharge height - see Specification
  • Stainless steel (AISI 304) construction
  • Mechanical speed variation
  • Adjustable chassis with wheels
  • Complete with loading hopper, liquid collection tank and electric control panel

Please call us on 01404 892100 to discuss your grape conveyor requirements.

See the 'Enoveneta' tab (below) for customer Case Studies which include Enoveta equipment.



Please see Elevators - Grape for our full range of grape elevators

Please see Reception & Sorting - Grape for our range of grape reception & sorting equipment

Please see Presses - Grape for our full range of wine presses



NE 250 grape elevators are manufactured by internationally renowned Enoveneta, manufacturers of oenological equipment for over 50 years, and are designed for conveying whole or destemmed grapes and fermented marc. They can be used to transfer grapes from bin to destemmer / crusher, sorting table or pneumatic press.

  • Conveying per hour: 2 to 10 tonnes
  • Available elevator lengths 2500, 3000 & 4000mm
  • PVC conveyor belt (250mm wide)
  • Variable discharge height - see Specification
  • Stainless steel (AISI 304) construction
  • Mechanical speed variation
  • Adjustable chassis with wheels
  • Complete with loading hopper, liquid collection tank and electric control panel

Please call us on 01404 892100 to discuss your grape conveyor requirements.

See the 'Enoveneta' tab (below) for customer Case Studies which include Enoveta equipment.



Please see Elevators - Grape for our full range of grape elevators

Please see Reception & Sorting - Grape for our range of grape reception & sorting equipment

Please see Presses - Grape for our full range of wine presses



View full details

NE 250 grape elevators are manufactured by internationally renowned Enoveneta, manufacturers of oenological equipment for over 50 years, and are designed for conveying whole or destemmed grapes and fermented marc. They can be used to transfer grapes from bin to destemmer / crusher, sorting table or pneumatic press.

  • Conveying per hour: 2 to 10 tonnes
  • Available elevator lengths 2500, 3000 & 4000mm
  • PVC conveyor belt (250mm wide)
  • Variable discharge height - see Specification
  • Stainless steel (AISI 304) construction
  • Mechanical speed variation
  • Adjustable chassis with wheels
  • Complete with loading hopper, liquid collection tank and electric control panel

Please call us on 01404 892100 to discuss your grape conveyor requirements.

See the 'Enoveneta' tab (below) for customer Case Studies which include Enoveta equipment.



Please see Elevators - Grape for our full range of grape elevators

Please see Reception & Sorting - Grape for our range of grape reception & sorting equipment

Please see Presses - Grape for our full range of wine presses



  • Motor power: 0.75kW
  • Three phase, 400V, 50Hz
  • Outlet: To your specification (supplied with Gas 1½mm as standard)

Dimensions (discharge height) & Weight:

  • 2500mm elevator length version: 1200-1800mm; weight: 165kg
  • 3000mm elevator length version: 1350-2100mm; weight 180kg
  • 4000mm elevator length version: 1800-2600mm; weight 210kg
