Enoveneta NE 500 elevators
Enoveneta NE 500 elevators

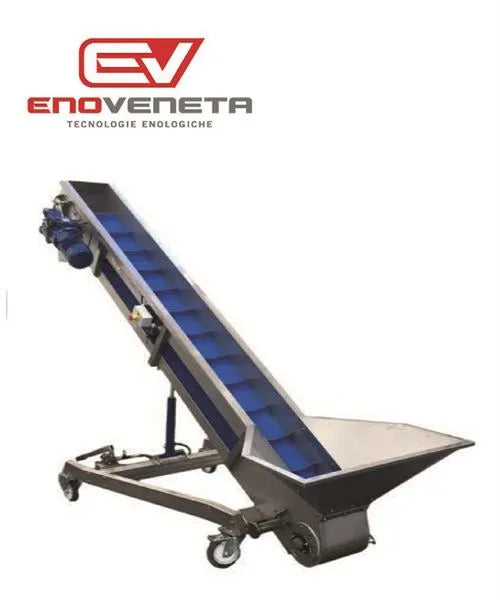

NE 500 grape elevators are manufactured by internationally renowned Enoveneta, manufacturers of oenological equipment for over 50 years, and are designed for conveying whole or destemmed grapes and fermented marc. They can be used to transfer grapes from bin to destemmer / crusher, sorting table or pneumatic press.
- Conveying per hour: 5 to 20 tonnes
- Available elevator lengths 2500, 3000, 3500, 4000, 4500, 5000, & 6000mm
- PVC conveyor belt (500mm wide)
- Variable discharge height - see Specification
- Stainless steel (AISI 304) construction
- Adjustable chassis with wheels
- Complete with loading hopper, liquid collection tank and electric control panel
Optional:
- Mechanical speed variation
- Electronic speed variation
- Larger loading hopper for unloading bins (1300x1500mm)
- Maxi loading hopper (1800x1800mm)
- Hopper with dripping grid for must collection
- Discharge chute of 800mm long, adjustable by 270 degrees - also adjustable height
- Crusher at elevator discharge for destemmed grapes
Please call us on 01404 892100 to discuss your grape conveyor requirements.
See the 'Enoveneta' tab (below) for customer Case Studies which include Enoveta equipment.
Please see Elevators - Grape for our full range of grape elevators
Please see Reception & Sorting - Grape for our range of grape reception & sorting equipment
Please see Presses - Grape for our range of wine presses
