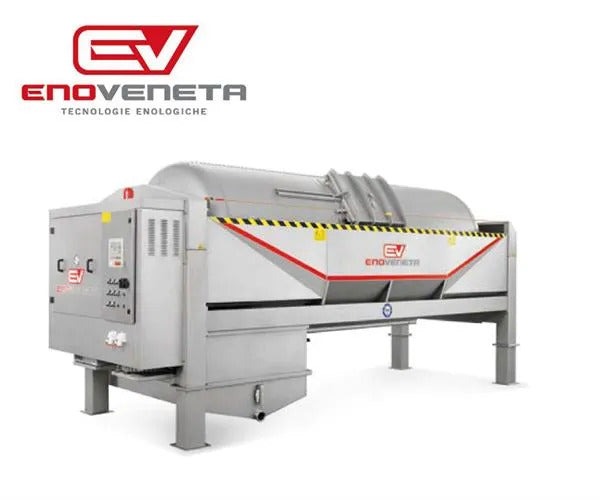

Enoveneta PPC-PLUS pneumatic diaphragm semi-hermetic closed presses

Enoveneta PPC-PLUS pneumatic diaphragm semi-hermetic closed presses

Enquire Online

PCC PLUS wine presses are manufactured by internationally renowned Enoveneta, who have been manufacturing oenological equipment for over 50 years.

Enoveneta horizontal pneumatic wine presses are designed to maximise grape yields, obtain a gentler pressing action, while reducing processing time. The software allows access to programs and pressing cycle optimisation via a 12" display. The membrane extension enables the press to operate at optimal pressure at full and part-full capacity. An internal device gently breaks up the grape pomace.

This closed version press includes internal drainage channels (see below) which are specifically designed to enable a continuous draining surface and maximise the draining flow, while minimising residue deposits between drains and reducing kneading times. This press allows hermetic closure and maceration inside the cylinder. It also features an inverter for speed control on the cylinder rotations.

  • Available models: PPC 45 PLUS, 70 PLUS, 100 PLUS, 150 PLUS, 250 PLUS, 330 PLUS & 430 PLUS - see Specification for capacities
  • Programmable touch screen PLC containing 6 standard programs and 90 free programs
  • Manufactured to Industry 4.0 technological standard for: control & management via PLC; remote access from PC, smartphone & tablet; remote diagnostics; interconnection between other Industry 4.0 machines already in the winery - *NB Additional router required for connection*
  • Presses whole grapes, destemmed grapes, and fermented mass
  • Large loading hermetic sliding door and large loading pneumatic door
  • Pressing cylinder with trapezoid shaped draining channels (horizontally aligned against one size of the inner wall; 45% drainage surface of cylinder) designed to minimise the accumulation of lees in the crumbling phase, and circular drains positioned in line which each channel for continuous and maximum draining
  • Quick inflation/deflation diaphragm
  • Mechanical chain transmission of cylinder for a smoother, gentler rotation
  • Stainless steel (AISI 304) construction
  • See Application for optional extras

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your grape pressing requirements.

Ā

See the 'Enoveta' tab for our customer Case Studies.

Ā

Please see the Presses - Grape category in Catalogue for our range of grape presses.

Please see the Crushers & Destemmers - Grape category for our range of grape crushers & destemmers.

For accessories, please see our PPE & Tools categories.

PCC PLUS wine presses are manufactured by internationally renowned Enoveneta, who have been manufacturing oenological equipment for over 50 years.

Enoveneta horizontal pneumatic wine presses are designed to maximise grape yields, obtain a gentler pressing action, while reducing processing time. The software allows access to programs and pressing cycle optimisation via a 12" display. The membrane extension enables the press to operate at optimal pressure at full and part-full capacity. An internal device gently breaks up the grape pomace.

This closed version press includes internal drainage channels (see below) which are specifically designed to enable a continuous draining surface and maximise the draining flow, while minimising residue deposits between drains and reducing kneading times. This press allows hermetic closure and maceration inside the cylinder. It also features an inverter for speed control on the cylinder rotations.

  • Available models: PPC 45 PLUS, 70 PLUS, 100 PLUS, 150 PLUS, 250 PLUS, 330 PLUS & 430 PLUS - see Specification for capacities
  • Programmable touch screen PLC containing 6 standard programs and 90 free programs
  • Manufactured to Industry 4.0 technological standard for: control & management via PLC; remote access from PC, smartphone & tablet; remote diagnostics; interconnection between other Industry 4.0 machines already in the winery - *NB Additional router required for connection*
  • Presses whole grapes, destemmed grapes, and fermented mass
  • Large loading hermetic sliding door and large loading pneumatic door
  • Pressing cylinder with trapezoid shaped draining channels (horizontally aligned against one size of the inner wall; 45% drainage surface of cylinder) designed to minimise the accumulation of lees in the crumbling phase, and circular drains positioned in line which each channel for continuous and maximum draining
  • Quick inflation/deflation diaphragm
  • Mechanical chain transmission of cylinder for a smoother, gentler rotation
  • Stainless steel (AISI 304) construction
  • See Application for optional extras

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your grape pressing requirements.

Ā

See the 'Enoveta' tab for our customer Case Studies.

Ā

Please see the Presses - Grape category in Catalogue for our range of grape presses.

Please see the Crushers & Destemmers - Grape category for our range of grape crushers & destemmers.

For accessories, please see our PPE & Tools categories.

View full details

PCC PLUS wine presses are manufactured by internationally renowned Enoveneta, who have been manufacturing oenological equipment for over 50 years.

Enoveneta horizontal pneumatic wine presses are designed to maximise grape yields, obtain a gentler pressing action, while reducing processing time. The software allows access to programs and pressing cycle optimisation via a 12" display. The membrane extension enables the press to operate at optimal pressure at full and part-full capacity. An internal device gently breaks up the grape pomace.

This closed version press includes internal drainage channels (see below) which are specifically designed to enable a continuous draining surface and maximise the draining flow, while minimising residue deposits between drains and reducing kneading times. This press allows hermetic closure and maceration inside the cylinder. It also features an inverter for speed control on the cylinder rotations.

  • Available models: PPC 45 PLUS, 70 PLUS, 100 PLUS, 150 PLUS, 250 PLUS, 330 PLUS & 430 PLUS - see Specification for capacities
  • Programmable touch screen PLC containing 6 standard programs and 90 free programs
  • Manufactured to Industry 4.0 technological standard for: control & management via PLC; remote access from PC, smartphone & tablet; remote diagnostics; interconnection between other Industry 4.0 machines already in the winery - *NB Additional router required for connection*
  • Presses whole grapes, destemmed grapes, and fermented mass
  • Large loading hermetic sliding door and large loading pneumatic door
  • Pressing cylinder with trapezoid shaped draining channels (horizontally aligned against one size of the inner wall; 45% drainage surface of cylinder) designed to minimise the accumulation of lees in the crumbling phase, and circular drains positioned in line which each channel for continuous and maximum draining
  • Quick inflation/deflation diaphragm
  • Mechanical chain transmission of cylinder for a smoother, gentler rotation
  • Stainless steel (AISI 304) construction
  • See Application for optional extras

Installed & commissioned by our Engineers.

Please call us on 01404 892100 to discuss your grape pressing requirements.

Ā

See the 'Enoveta' tab for our customer Case Studies.

Ā

Please see the Presses - Grape category in Catalogue for our range of grape presses.

Please see the Crushers & Destemmers - Grape category for our range of grape crushers & destemmers.

For accessories, please see our PPE & Tools categories.

Optional:

  • Pressure switch for axial load
  • Pneumatic axial valve (PPC 45 only)
  • Inert gas injection system
  • Polished internal tank finish
  • Electropolished drainage channels
  • Hinged drainage channels
  • Pneumatic draining valves
  • Manual draining valves (PPC 45 only)
  • Pneumatic valve for automatic selection of must (programmable through PLC)
  • Various compressors (PPC 100 - 550 PLUS)
  • External cylinder washing system
  • Must collection basin washing system
  • Router for Industry 4.0
  • Motorised wheels for moving press (PPA 45 - 70 only
  • Legs elevation

Ā

  • Three phase, 400V, 50Hz

Models:

PPC 45

  • Whole grapes: 3 to 3.3 tonnes (main door)
  • Destemmed/crushed grapes: 9.5 to 10.5 tonnes (axial loading)
  • Fermented mass: 14 to 18 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 450 litres
  • Axial load valve: Garolla 120mm Ƙ
  • Motor: 7.7kW
  • Dimensions: 4700 x 1900 x 2000mm high
  • Weight: 1700kg

PPA 70

  • Whole grapes: 4.7 to 5.2 tonnes (main door)
  • Destemmed/crushed grapes: 16 to 20 tonnes (axial loading)
  • Fermented mass: 25 to 30 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 850 litres
  • Axial load valve: Garolla 120mm Ƙ
  • Motor: 14.5kW
  • Dimensions: 5000 x 2200 x 2960mm high
  • Weight: 3200kg

PPA 100

  • Whole grapes: 6.8 to 7.4 tonnes (main door)
  • Destemmed/crushed grapes: 24 to 32 tonnes (axial loading)
  • Fermented mass: 35 to 45 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 850 litres
  • Axial load valve: Garolla 120mm Ƙ
  • Motor: 8kW
  • Dimensions: 6350 x 2220 x 2960mm high
  • Weight: 4000kg

PPA 150

  • Whole grapes: 10 to 11 tonnes (main door)
  • Destemmed/crushed grapes: 32 to 42 tonnes (axial loading)
  • Fermented mass: 55 to 65 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 1200 litres
  • Axial load valve: Garolla 120mm Ƙ
  • Motor: 9.5kW
  • Dimensions: 6850 x 2600 x 3400mm high
  • Weight: 5200kg

PPA 250

  • Whole grapes: 17 to 19 tonnes (main door)
  • Destemmed/crushed grapes: 40 to 71 tonnes (axial loading)
  • Fermented mass: 80 to 100 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 1200 litres
  • Axial load valve: Garolla 120mm Ƙ
  • Motor: 15kW
  • Dimensions: 8500 x 2780 x 2680mm high
  • Weight: 7500kg

PPA 330

  • Whole grapes: 22 to 25 tonnes (main door)
  • Destemmed/crushed grapes: 53 to 92 tonnes (axial loading)
  • Fermented mass: 105 to 132 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 2300 litres
  • Axial load valve: Garolla 150mm Ƙ
  • Motor: 28kW
  • Dimensions: 9000 x 2980 x 3200mm high
  • Weight: 9000kg

PPA 430

  • Whole grapes: 28 to 33 tonnes (main door)
  • Destemmed/crushed grapes: 68 to 120 tonnes (axial loading)
  • Fermented mass: 135 to 172 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 2300 litres
  • Axial load valve: Garolla 150mm Ƙ
  • Motor: 31.5kW
  • Dimensions: 11000 x 2980 x 3200mm high
  • Weight: 9900kg

PPA 550

  • Whole grapes: 44 to 51 tonnes (main door)
  • Destemmed/crushed grapes: 78 to 156 tonnes (axial loading)
  • Fermented mass: 156 to 261 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 2600 litres
  • Axial load valve: Garolla 150mm Ƙ
  • Motor: 31.5kW
  • Dimensions: 12300 x 3480 x 3220mm high
  • Weight: 13000kg

PPA 700

  • Whole grapes: 55 to 65 tonnes (main door)
  • Destemmed/crushed grapes: 98 to 196 tonnes (axial loading)
  • Fermented mass: 196 to 326 tonnes (fermentation tank, axial loading)
  • Must collection capacity: 2600 litres
