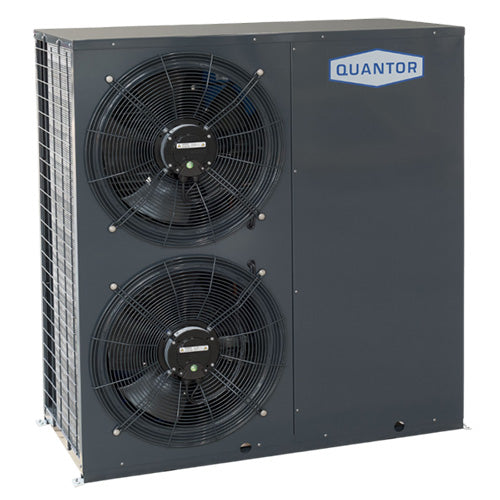

Quantor Pro Q181R-Q452R Fixed Cooling Unit

Quantor Pro Q181R-Q452R Fixed Cooling Unit

Enquire Online

QUANTOR is a series of air-cooled cooling and heating units, developed specifically for use in the production of wine, beer, cider and other beverages.

The range allows for cold maceration, cold-settling, fermentation control, wine stabilization, crush-cooling of brew mash-cooling, cooling for storage and conditioning, fast cooling of mixed-drinks and syrup in heat exchangers, and cooling for carbonation. (Glycol-water temperature down to -10°C possible).

Room air conditioning (cooling or heating) is also possible with additional fan coils.

The units are available in five model sizes, with cooling capacities from 18 to 45 kW.



QUANTOR is a series of air-cooled cooling and heating units, developed specifically for use in the production of wine, beer, cider and other beverages.

The range allows for cold maceration, cold-settling, fermentation control, wine stabilization, crush-cooling of brew mash-cooling, cooling for storage and conditioning, fast cooling of mixed-drinks and syrup in heat exchangers, and cooling for carbonation. (Glycol-water temperature down to -10°C possible).

Room air conditioning (cooling or heating) is also possible with additional fan coils.

The units are available in five model sizes, with cooling capacities from 18 to 45 kW.



View full details

QUANTOR is a series of air-cooled cooling and heating units, developed specifically for use in the production of wine, beer, cider and other beverages.

The range allows for cold maceration, cold-settling, fermentation control, wine stabilization, crush-cooling of brew mash-cooling, cooling for storage and conditioning, fast cooling of mixed-drinks and syrup in heat exchangers, and cooling for carbonation. (Glycol-water temperature down to -10°C possible).

Room air conditioning (cooling or heating) is also possible with additional fan coils.

The units are available in five model sizes, with cooling capacities from 18 to 45 kW.



  • Cooling mode: from -10°C to +18°C
  • Heating mode: from +25°C up to +50°C
  • Reversible unit - Heat-pump
  • Water tank in stainless steel
  • Outlet temperature down to -10°C
  • By-pass valve (1”)
  • Isolation valves for inlet / outlet (1¼” female)
  • Remote control (2 versions - BASIC and PLUS)
  • Cover hoods made of reinforced PVC available for both sizes
  • Cooled fermentation of wine, beer and other beverages
  • Wort cooling
  • Cold maceration and tartaric stabilization of wines
  • Heating of stabilized wine or cold storage of wine before bottling
  • Room conditioning of halls and storage rooms - with additional fan coils
  • Available in four sizes: Q181R / Q241R / Q352R / Q452R
  • Cooling capacity: 18 - 45 kW
  • Refrigerant: R410A
  • Electric connection: 400V/3Ph/50Hz
