Schneider Phoenix 12000 Impeller pumps
Schneider Phoenix 12000 Impeller pumps
SKU:93104
Impeller pumps are used for the rapid transfer of liquids, e.g., when pressing fruit, raking off after fermentation, and pumping from one tank or vessel to another. Phoenix 1200 impeller pumps are manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps. Phoenix 12000 pumps have a maximum capacity of 12000 litres per hour.
High quality rubber impeller pumps

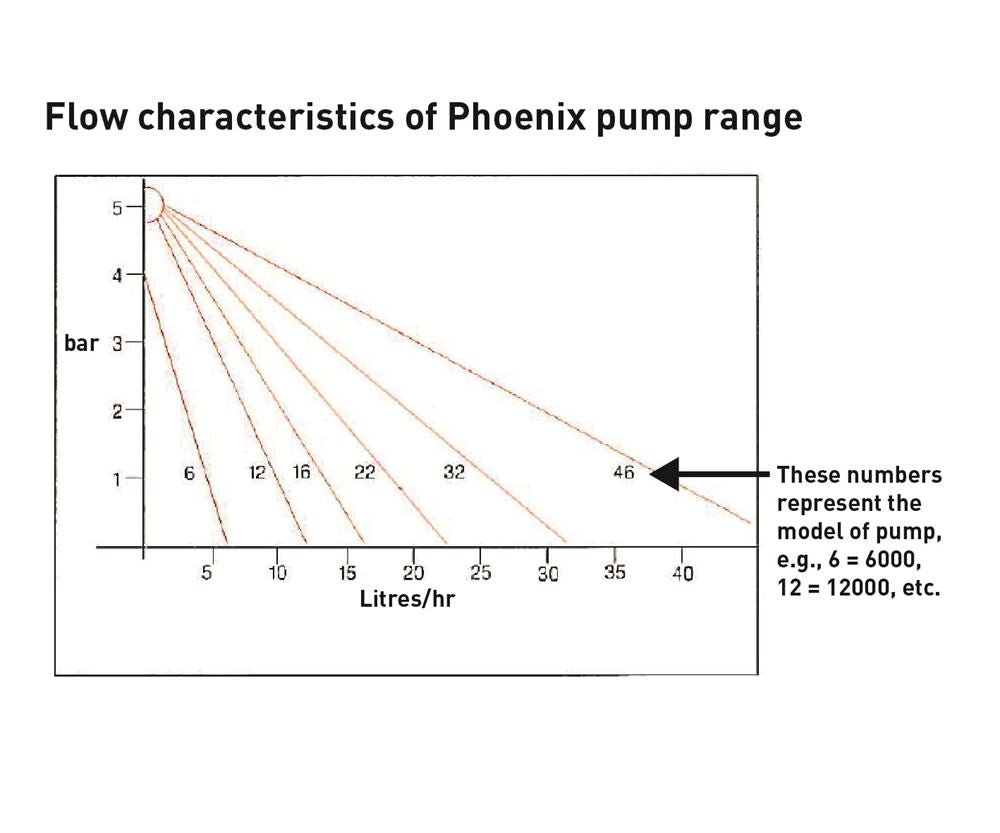

12000 litres per hour - see Flow Characteristics graph
Single/fixed speed as standard - 2 speed or variable speed versions available on request, see Features
Reversible motor for pumping in either direction (forward & back)
- Stainless steel three part body with highly polished internal surfaces
- Integral bypass to regulate delivery pressure and flow rate

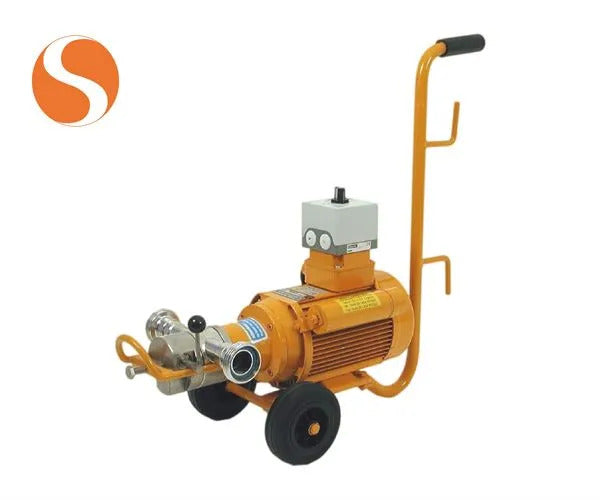

- Mounted on a trolley
- All pump parts can be serviced by removing one clamp bolt
- Choice of impeller material – neoprene as standard
NB: Threaded connections to your specification - please advise us of your requirements immediately after ordering
NB Designed to handle liquids up to 40ºC - impellers to handle higher temperatures (and oils) are available on request
NB Reinforced hose of a minimum bore of 32mm (1.25mm) should be used with this pump - see the Hoses link below.
Can be used with our Remote Control System - (part codes 93303 & 93304) - available separately.
We've supplied hundreds of Scheider pumps over the years. See the 'Schneider' tab below for some customer Case Studies which include Schneider pumps.
If you need advise on whether this pump is suitable for your application, please call uson 01404 892 100.
NB You can order spare impellers online for this pump - please see the Spares category in Catalogue and Refine by 'Type'.
Please see the Pumps category in Catalogue for our full range of Pumps.
For hoses, please see our Hoses category; For hosetails and other fittings, please see our Fittings category. Please see our range of Presses - Apple, Presses - Grape, & Tanks.
