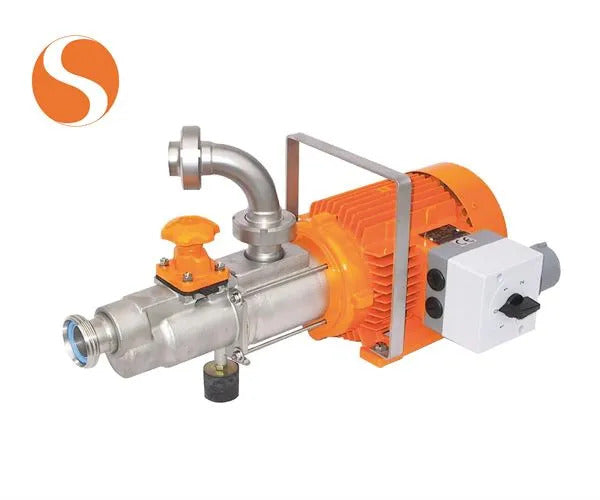

Schneider SP eccentric screw pumps with bypass

Schneider SP eccentric screw pumps with bypass

Enquire Online

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. The SP eccentric screw pump range is manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps. The SP range includes 4 models of pump, with a capacity range from 2,800 to 40,000 litres per hour.

  • High quality eccentric screw pumps
  • Models range from 2,800 to 40,000 litres per hour
  • 2 speed as standard
  • Reversible motor for pumping in either direction (forward & back)
  • Smooth, gentle flow
  • Suitable for free-running, viscous liquids, and liquids containing a high solid load, such as fruit pulps
  • Ideal for use (where necessary) between milling/crushing and pressing equipment and for routine transfer from tank to tank or vessel to vessel
  • With bypass
  • Stainless steel rotor and contact parts
  • Mounted on a trolley

NB: Threaded connections to your specification -Ā please advise us of your requirements immediately after ordering

NB Spiral reinforced hose should be used with these pumps - see the Hoses link below.

NB for a variable speed version of these pumps, please seeĀ SP Evario Eccentric Screw Pumps

Can be used with ourĀ Remote Control SystemĀ - (part codes 93303 & 93304) - available separately.

We've supplied hundreds of Scheider pumps over the years.Ā See the 'Schneider' tab below for someĀ customer Case StudiesĀ which include Schneider pumps.

Please call us on 01404 892 100 to discuss your pump requirements.

Ā

NB You can order spare stators online for this pump - please see theĀ SparesĀ category in Catalogue and Refine by 'Type'.

Ā

Please see theĀ PumpsĀ category in Catalogue for our full range of Pumps.

For hoses, please see ourĀ HosesĀ category; For hosetails and other fittings, please see ourĀ FittingsĀ category. Please also see ourĀ Mills - Apple,Ā Presses - Apple, &Ā Tanks.

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. The SP eccentric screw pump range is manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps. The SP range includes 4 models of pump, with a capacity range from 2,800 to 40,000 litres per hour.

  • High quality eccentric screw pumps
  • Models range from 2,800 to 40,000 litres per hour
  • 2 speed as standard
  • Reversible motor for pumping in either direction (forward & back)
  • Smooth, gentle flow
  • Suitable for free-running, viscous liquids, and liquids containing a high solid load, such as fruit pulps
  • Ideal for use (where necessary) between milling/crushing and pressing equipment and for routine transfer from tank to tank or vessel to vessel
  • With bypass
  • Stainless steel rotor and contact parts
  • Mounted on a trolley

NB: Threaded connections to your specification -Ā please advise us of your requirements immediately after ordering

NB Spiral reinforced hose should be used with these pumps - see the Hoses link below.

NB for a variable speed version of these pumps, please seeĀ SP Evario Eccentric Screw Pumps

Can be used with ourĀ Remote Control SystemĀ - (part codes 93303 & 93304) - available separately.

We've supplied hundreds of Scheider pumps over the years.Ā See the 'Schneider' tab below for someĀ customer Case StudiesĀ which include Schneider pumps.

Please call us on 01404 892 100 to discuss your pump requirements.

Ā

NB You can order spare stators online for this pump - please see theĀ SparesĀ category in Catalogue and Refine by 'Type'.

Ā

Please see theĀ PumpsĀ category in Catalogue for our full range of Pumps.

For hoses, please see ourĀ HosesĀ category; For hosetails and other fittings, please see ourĀ FittingsĀ category. Please also see ourĀ Mills - Apple,Ā Presses - Apple, &Ā Tanks.

View full details

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. The SP eccentric screw pump range is manufactured by Schneider Pumpen, who have over 70 years' experience manufacturing pumps. The SP range includes 4 models of pump, with a capacity range from 2,800 to 40,000 litres per hour.

  • High quality eccentric screw pumps
  • Models range from 2,800 to 40,000 litres per hour
  • 2 speed as standard
  • Reversible motor for pumping in either direction (forward & back)
  • Smooth, gentle flow
  • Suitable for free-running, viscous liquids, and liquids containing a high solid load, such as fruit pulps
  • Ideal for use (where necessary) between milling/crushing and pressing equipment and for routine transfer from tank to tank or vessel to vessel
  • With bypass
  • Stainless steel rotor and contact parts
  • Mounted on a trolley

NB: Threaded connections to your specification -Ā please advise us of your requirements immediately after ordering

NB Spiral reinforced hose should be used with these pumps - see the Hoses link below.

NB for a variable speed version of these pumps, please seeĀ SP Evario Eccentric Screw Pumps

Can be used with ourĀ Remote Control SystemĀ - (part codes 93303 & 93304) - available separately.

We've supplied hundreds of Scheider pumps over the years.Ā See the 'Schneider' tab below for someĀ customer Case StudiesĀ which include Schneider pumps.

Please call us on 01404 892 100 to discuss your pump requirements.

Ā

NB You can order spare stators online for this pump - please see theĀ SparesĀ category in Catalogue and Refine by 'Type'.

Ā

Please see theĀ PumpsĀ category in Catalogue for our full range of Pumps.

For hoses, please see ourĀ HosesĀ category; For hosetails and other fittings, please see ourĀ FittingsĀ category. Please also see ourĀ Mills - Apple,Ā Presses - Apple, &Ā Tanks.

Eccentric screw pumps, also known as progressive cavity pumps, are highly versatile. They are ideal for pumping viscous liquids, fruit pulp, and free-running liquids. Please note,Ā forĀ high solid loads, models SP3 & SP4 are the appropriate pumpsĀ [SP1 & SP2 are more suitable for pumping liquids gently with minimum agitation].

They areĀ notĀ generally suitable for use with filters unless the pump has a precise variable speed control -Ā the standard version of this pump doesn't have variable speed control,Ā however see the an eccentric screw pump with variable speed control.

  • Maximum ABV: 15%

Ā

SP1 eccentric screw pump with bypassĀ - more suited to pumping liquids gently with minimum agitation, rather than pumping high solid loads

  • Flow rate: 2800/5600 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 1.5 kW
  • Threaded connection to your specification
  • Weight: 24 kg

SP2 eccentric screw pump with bypassĀ -more suited to pumping liquids gently with minimum agitation, rather than pumping high solid loads

  • Flow rate: 4500/9000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 2.2 kW
  • Threaded connection DIN65 as standard, otherwise to your specification
  • Weight: 33 kg

SP3 eccentric screw pump with bypassĀ - ideal for high solid loads

  • Flow rate: 10,000/20,000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 3 kW
  • Threaded connection DIN65 as standard, otherwise to your specification
  • Weight: 75 kg

SP4 eccentric screw pump with bypassĀ - ideal for high solid loads

  • Flow rate: 20,000/40,000 litres per hour @ 0 bar
  • Maximum ABV: 15%
  • Rated IP54
  • Motor: 7.5 kW
  • Threaded connection DIN100 or 90Mash as standard, otherwise to your specification
  • Weight: 88 kg
