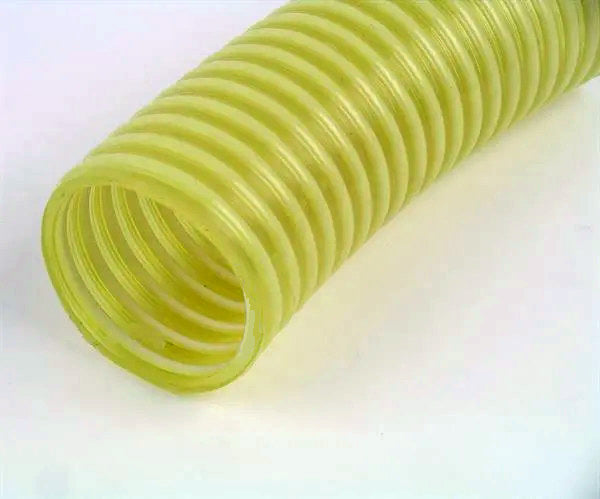

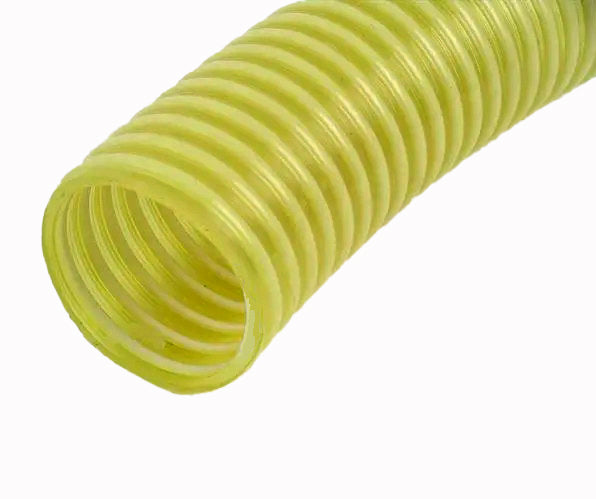

Spiral PVC reinforced hose

Spiral PVC reinforced hose

SKU:32111

Regular price £24.15 GBP
Regular price Sale price £24.15 GBP
Sale Awaiting Stock - Click to Enquire
Shipping calculated at checkout.

This spiral PVC reinforced hose is typically used for grape or apple pulp discharge.

  • Sold in multiples of 10 [10 = 10m; 20 = 20m; 30m = 30m, etc.]; please insert the total number of metres (10/20/30/40, etc.) you want to order in the Quantity box
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on the quantity ordered (a full reel is 30m)

NB Discounts available for quantity purchases. Click on 'Show Price Breaks' to the left of the price above.



Ideal for use with our Tube/Hose Cleaning Balls (part code 32906, etc.).



Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter]; If you require hose fittings, please see the Fittings category in Catalogue for our full range of Fittings.

Please see Hoses for our full range of hoses.

For drink production equipment and other consumables please see the relevant categories in Catalogue.

Size

This spiral PVC reinforced hose is typically used for grape or apple pulp discharge.

  • Sold in multiples of 10 [10 = 10m; 20 = 20m; 30m = 30m, etc.]; please insert the total number of metres (10/20/30/40, etc.) you want to order in the Quantity box
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on the quantity ordered (a full reel is 30m)

NB Discounts available for quantity purchases. Click on 'Show Price Breaks' to the left of the price above.



Ideal for use with our Tube/Hose Cleaning Balls (part code 32906, etc.).



Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter]; If you require hose fittings, please see the Fittings category in Catalogue for our full range of Fittings.

Please see Hoses for our full range of hoses.

For drink production equipment and other consumables please see the relevant categories in Catalogue.

View full details

This spiral PVC reinforced hose is typically used for grape or apple pulp discharge.

  • Sold in multiples of 10 [10 = 10m; 20 = 20m; 30m = 30m, etc.]; please insert the total number of metres (10/20/30/40, etc.) you want to order in the Quantity box
  • Orders up to and including 30m will be supplied as one complete length; orders over 30m will be supplied in 2 or more lengths depending on the quantity ordered (a full reel is 30m)

NB Discounts available for quantity purchases. Click on 'Show Price Breaks' to the left of the price above.



Ideal for use with our Tube/Hose Cleaning Balls (part code 32906, etc.).



Please see Hose Clips (Stainless Steel) - for our full range of hose clips [Specification shows the sizes required for each hose diameter]; If you require hose fittings, please see the Fittings category in Catalogue for our full range of Fittings.

Please see Hoses for our full range of hoses.

For drink production equipment and other consumables please see the relevant categories in Catalogue.

  • Not suitable for products with an ABV over 20%
  • Suitable for temperatures from -5 to +60°C
  • Pressure @ 20°C: 4 bar
  • Vacuum resistance: Up to 7 mH2O
  • Not suitable for products with an ABV over 20%

32mm (1¼") Ø

  • Hose external diameter : 39.2 mm
  • Hose wall diameter: 3.6mm
  • Appropriate hoseclip (available separately): part code 57705

38mm (1½") Ø

  • Hose external diameter : 45.4 mm
  • Hose wall diameter: 3.7mm
  • Appropriate hoseclip (available separately): part code 57706

50mm (2") Ø

  • Hose external diameter : 58 mm
  • Hose wall diameter: 4.0mm
  • Appropriate hoseclip (available separately): part code 57707

60mm (2 3/8") Ø

  • Hose external diameter : 69 mm
  • Hose wall diameter: 4.5mm
  • Appropriate hoseclip (available separately): part code 57707

63mm (2½") Ø

  • Hose external diameter : 73 mm
  • Hose wall diameter: 5.0mm
  • Appropriate hoseclip (available separately): part code 57708

75mm (3") Ø

  • Hose external diameter : 85.5 mm
  • Hose wall diameter: 5.2mm
  • Appropriate hoseclip (available separately): part code 57708

100mm (4") Ø

  • Hose external diameter : 114.2 mm
  • Hose wall diameter: 6.2mm
  • Appropriate hoseclip (available separately): part code 57814
