CM3 START Semi-Automatic Dosing Unit
CM3 START Semi-Automatic Dosing Unit
START is an ideal solution for small laboratories or newcos, which do not have great needs in terms of hourly production. It is suitable for managing liquid, semi-dense or dense products in glass or plastic jars with wide application in the food, cosmetic and chemical sectors.
FUNCTIONS

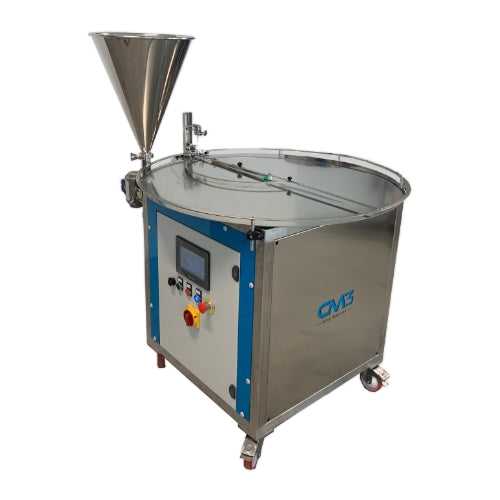

The system is composed of a pneumatic volumetric doser which can also be combined with a product loading hopper (up to 30 litres), and a rotating table of Ø 1,000 on which the operator will place the empty bottles which will be filled automatically and then manually unloaded from the accumulation area.
TECHNICAL SPECIFICATIONS
- Dimensions - Length: 1.550 mm x Height: 1.700 mm x Width: 460 mm
- Production speed - Up to 900 pcs/h based on the format and the product to be treated
- Bottle measurements - Lenght: up to 100 mm, Height: up to 350 mm
- Dosing versions (ml) - Volumetric Pump from 0 to 1.500 with range chosen based on the project. Peristaltic pump.
