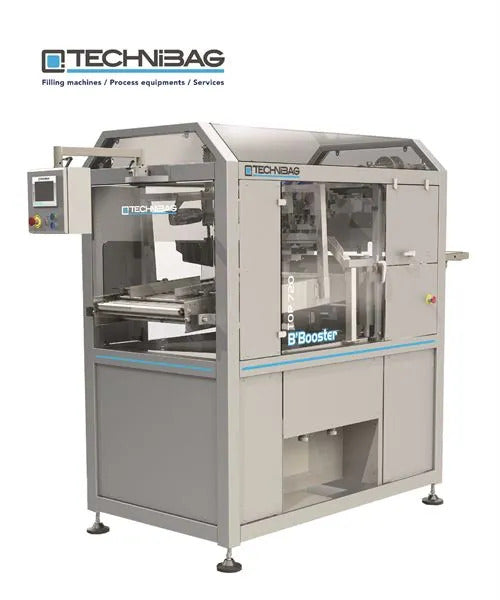

Technibag B'Booster Top 720 automatic bag in box or pouch filler

Technibag B'Booster Top 720 automatic bag in box or pouch filler

Enquire Online

The B'Booster Top 720 is an automatic filling machine for filling vacuum bags or pouches, manufactured by Technibag®, specialist manufacturers of bag-in-box filling and packing equipment.

  • Fills vacuum bags (pouch module required to fill pouches)
  • Fill rate 720 3 litre bags per hour
  • Automatic machine which can be used as a stand alone machine, or alongside the C'Booster Top 720/900 Automatic Bag Packing Machine; or as part of the complete Flexi-Line
  • Process includes automatic feed of bags (on web), multi-stage filling cycle (see Application), through to detachment and evacuation of bags
  • Oxycontrol included as part of cycle
  • Integrated CIP
  • 7" colour multi-function touch screen control
  • Access interface functions via Smartphone, tablet or PC to track:
    • Production - program management, rate/output, production planning
    • Statistics - quantities filled per batch; total quantity filled; start-up statistics, cleaning statistics, etc.
    • Maintenance - preventative maintenance count-down
  • Stainless steel construction
  • Many options including pump; pouch module (changeover in less than 30 mins); temperature control; ISO 7 laminar flow hood with booster; prefilter & U15 filter; electromagnetic counter, etc.

The B'Booster can be fitted with a dual head for higher speed production rates

The B'Booster can be supplied as an 'Ultra Clean' model, which includes electromagnetic meter, specific controller program, Laminar flow hood including supercharger, pre filter and U15-ISO 7 filter with sealing control, and 'fully cleanable' guaranteed features

Installed & commissioned by our Engineers.

Please contact us on 01404 892100 to discuss your bag in box (or pouch) filling requirements.

See the 'Technibag' tab (below) for customer Case Studies.



Use with our Bag in Boxes , available separately.

See Bag in Box & Pouch Fillers in Catalogue for our full range of bag in box and pouch fillers, including bag coolers, box erectors & box sealers

The B'Booster Top 720 is an automatic filling machine for filling vacuum bags or pouches, manufactured by Technibag®, specialist manufacturers of bag-in-box filling and packing equipment.

  • Fills vacuum bags (pouch module required to fill pouches)
  • Fill rate 720 3 litre bags per hour
  • Automatic machine which can be used as a stand alone machine, or alongside the C'Booster Top 720/900 Automatic Bag Packing Machine; or as part of the complete Flexi-Line
  • Process includes automatic feed of bags (on web), multi-stage filling cycle (see Application), through to detachment and evacuation of bags
  • Oxycontrol included as part of cycle
  • Integrated CIP
  • 7" colour multi-function touch screen control
  • Access interface functions via Smartphone, tablet or PC to track:
    • Production - program management, rate/output, production planning
    • Statistics - quantities filled per batch; total quantity filled; start-up statistics, cleaning statistics, etc.
    • Maintenance - preventative maintenance count-down
  • Stainless steel construction
  • Many options including pump; pouch module (changeover in less than 30 mins); temperature control; ISO 7 laminar flow hood with booster; prefilter & U15 filter; electromagnetic counter, etc.

The B'Booster can be fitted with a dual head for higher speed production rates

The B'Booster can be supplied as an 'Ultra Clean' model, which includes electromagnetic meter, specific controller program, Laminar flow hood including supercharger, pre filter and U15-ISO 7 filter with sealing control, and 'fully cleanable' guaranteed features

Installed & commissioned by our Engineers.

Please contact us on 01404 892100 to discuss your bag in box (or pouch) filling requirements.

See the 'Technibag' tab (below) for customer Case Studies.



Use with our Bag in Boxes , available separately.

See Bag in Box & Pouch Fillers in Catalogue for our full range of bag in box and pouch fillers, including bag coolers, box erectors & box sealers

View full details

The B'Booster Top 720 is an automatic filling machine for filling vacuum bags or pouches, manufactured by Technibag®, specialist manufacturers of bag-in-box filling and packing equipment.

  • Fills vacuum bags (pouch module required to fill pouches)
  • Fill rate 720 3 litre bags per hour
  • Automatic machine which can be used as a stand alone machine, or alongside the C'Booster Top 720/900 Automatic Bag Packing Machine; or as part of the complete Flexi-Line
  • Process includes automatic feed of bags (on web), multi-stage filling cycle (see Application), through to detachment and evacuation of bags
  • Oxycontrol included as part of cycle
  • Integrated CIP
  • 7" colour multi-function touch screen control
  • Access interface functions via Smartphone, tablet or PC to track:
    • Production - program management, rate/output, production planning
    • Statistics - quantities filled per batch; total quantity filled; start-up statistics, cleaning statistics, etc.
    • Maintenance - preventative maintenance count-down
  • Stainless steel construction
  • Many options including pump; pouch module (changeover in less than 30 mins); temperature control; ISO 7 laminar flow hood with booster; prefilter & U15 filter; electromagnetic counter, etc.

The B'Booster can be fitted with a dual head for higher speed production rates

The B'Booster can be supplied as an 'Ultra Clean' model, which includes electromagnetic meter, specific controller program, Laminar flow hood including supercharger, pre filter and U15-ISO 7 filter with sealing control, and 'fully cleanable' guaranteed features

Installed & commissioned by our Engineers.

Please contact us on 01404 892100 to discuss your bag in box (or pouch) filling requirements.

See the 'Technibag' tab (below) for customer Case Studies.



Use with our Bag in Boxes , available separately.

See Bag in Box & Pouch Fillers in Catalogue for our full range of bag in box and pouch fillers, including bag coolers, box erectors & box sealers

Automatic functions:

  • Presentation and introduction of empty bags
  • Air removal from bag
  • Metering & filling
  • Nitrogen injection and sweeping
  • Oxycontrol
  • Tap repositioning
  • Sniffing
  • Ejection of filled bag
  • Detachment of bag
  • Evacuation of bag

Maximum fill rate by bag capacity*:

  • 3 litre: 720 bph
  • 5 litre: 610 bph
  • 10 litre: 440 bph
  • 15 litre: 345 bph
  • 20 litre: 280 bph

Maximum fill rate by pouch capacity with pouch module (optional extra) * [pph= pouches per hour]:

  • 1.5 litre: 585 pph
  • 3 litre: 525 pph

( * ) With liquid flow of 123 HL/h, via AL 50 pump, supplied separately

Filling

  • Suitable for: wine & fruit juices (for other liquids, please enquire)
  • Vacuum bags: 2 to 20 litre
  • Pouches: 1.5 to 3 litre
  • Filling: feed via pump (supplied separately)
  • Product temperature: up to 110 degrees C

Taps

  • Suitable for: Vitop-type taps with a high neck
  • Frame made entirely of AISI 304 stainless steel
  • B&R display with 7" colour multi-functional touch screen
  • Pulse counter (72 points per litre)
  • AISI 316 stainless steel tubes with bevelled welding
  • Built-in 0-4 Bar pressure regulator (for nitrogen)
  • Venturi vacuum pump with electronic vacuum regulator
  • Electric roller table with collection and removal tray
  • Integrated & guided CIP circuit with automated cleaning of vacuum circuit
  • Crimped hoses with clamp connectors (25mm) on filling circuit and CIP
  • Air pressure: 7 to 10 Bar
  • Air consumption: 7m3/h
  • Nitrogen supply: 1-4 Bar
  • Noise level: <85 db
  • Power supply: 400V, 50Hz, three phase
  • Connections to your specification (Macon 40 as standard)
  • Dimensions: Width 1130 x depth 1880 x height 2100mm
  • Weight: 409g

Technibag™ are specialist manufacturers of bag-in-box filling and packing equipment. They have over 20 years' experience, an international reputation, and we are proud to be their UK agents.

Here are some of the reasons why we choose Technibag:

  • Their bag-in-box solutions are designed to preserve the quality of packaged beverages
  • They rely on both their expertise and proven methods to optimize each filling machine function, including pump size, filling head precision, meter programming, interface functions, vacuum regulation, the holding and tap-positioning system and the bag ejection system
  • Design and manufacture is carried out by their technical team in their manufacturing plant in France so they are in full control of the process
  • Their fillers can also fill pouches, via additional change parts
  • They operate to stringent quality standards: equipment manufactured by Technibag is checked by independent organisations including APAVE (a safety audit organisation) and Bureau Veritas (a world leader in testing, inspection and certification)
  • They are respected globally, being represented across 5 continents over 85 countries
  • Their are product innovators - 30% of their employees are assigned to their design and R&D departments (see below)
  • They are highly committed to industry development and sharing expertise (see below)

Technology:

Since it established in 2000, Technibag has launched over 20 new products and carried out many research programs to place it at the forefront of innovative product development. Technibag's latest technological developments include:

  • DAS system: Automated start-up of filling cycle
  • Oxycontrol™ technology: Nitrogen flushing of tap collar prior to closure
  • Web & single technology: Models available for single bags/pouches and bags on a web
  • Ultra-clean™ models: compliant with specific food-industry quality standards - includes AISI 316 stainless steel chamber-welded liquid contact parts, electromagnetic flow-meter, steam-cleanable up to 110°C, IP65 filling head components, etc.
  • Connectivity: Via Smartphone, tablet or PC (B'Booster only)
  • Flow Pilot regulator: A unique solution (buffer vat under nitrogen pressure) that guarantees quick, precise, high-quality filling without oxidation; for automatic lines - installed between the pasteuriser and the filling machine

Advancement of the Industry:

Technibag are committed to industry development and participate in the following cross-company/organisational programs:

  • European Hygienic Engineering & Design Group (EHDG) - collaboration ensures hygienic design equipment and installations
  • ECAM - a mechanical engineering college internationally renowned for its innovations
  • CTCPA - a food processing research institute and analysis lab
  • Performance BIB - international research association for BIB beverages

The video:

Watch the Technibag video here.

The range:

The Technibag range includes the following, which are listed in the Bag in Box & Pouch Fillers Fillers category:

  • Bag fillers
  • Bag cooling system (post-fill)
  • Box shapers
  • Box closers
  • Weighers
  • Box labellers & ink/laser markers
  • Box handle attachers
  • Palletisers

Blog

To read about the general concept of bag-in-box please read our Bag in Box Benefits blog.

What we can offer:

In partnership with Technibag, we can offer you:

  • Advice on the appropriate equipment for you - taking budget, space and desired throughput into consideration
  • Installation, commissioning & training by our team of experienced, multi-skilled team of Vigo engineers
  • Comprehensive 12 month warranty, backed up by Vigo engineers
  • Maintenance and full technical backup from our mobile engineers
  • Spare parts

Case Studies

The Case Studies below represent a small sample of the bag in box systems we have supplied over the years:

​
How can we help you?

If you're looking to start filling via bag in box , or you are a new startup, please give us a call on 01404 892 100 and we will be happy to discuss your requirements.
