Tenco Jarselite semi-automatic filler and capper

Tenco Jarselite semi-automatic filler and capper

Enquire Online

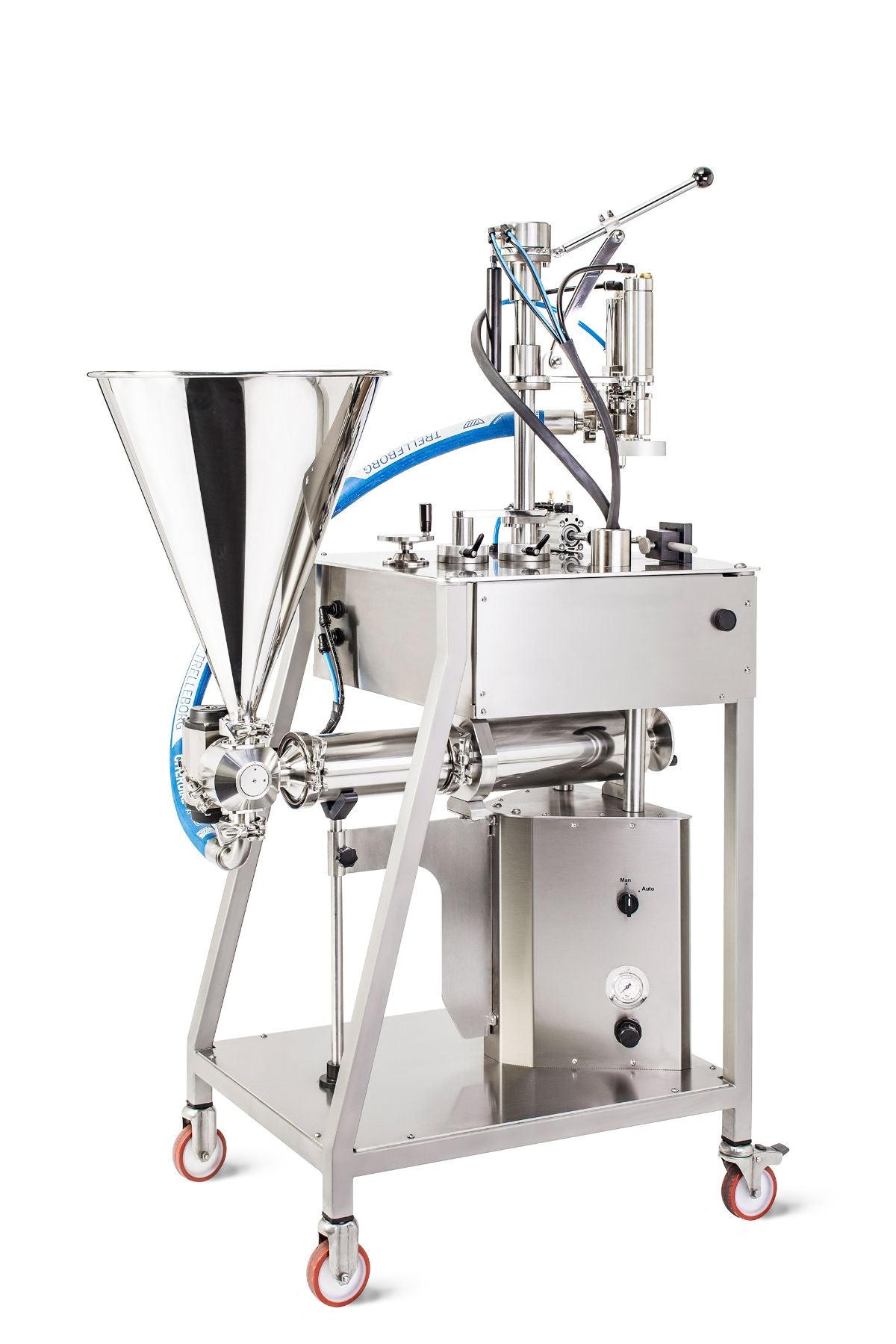

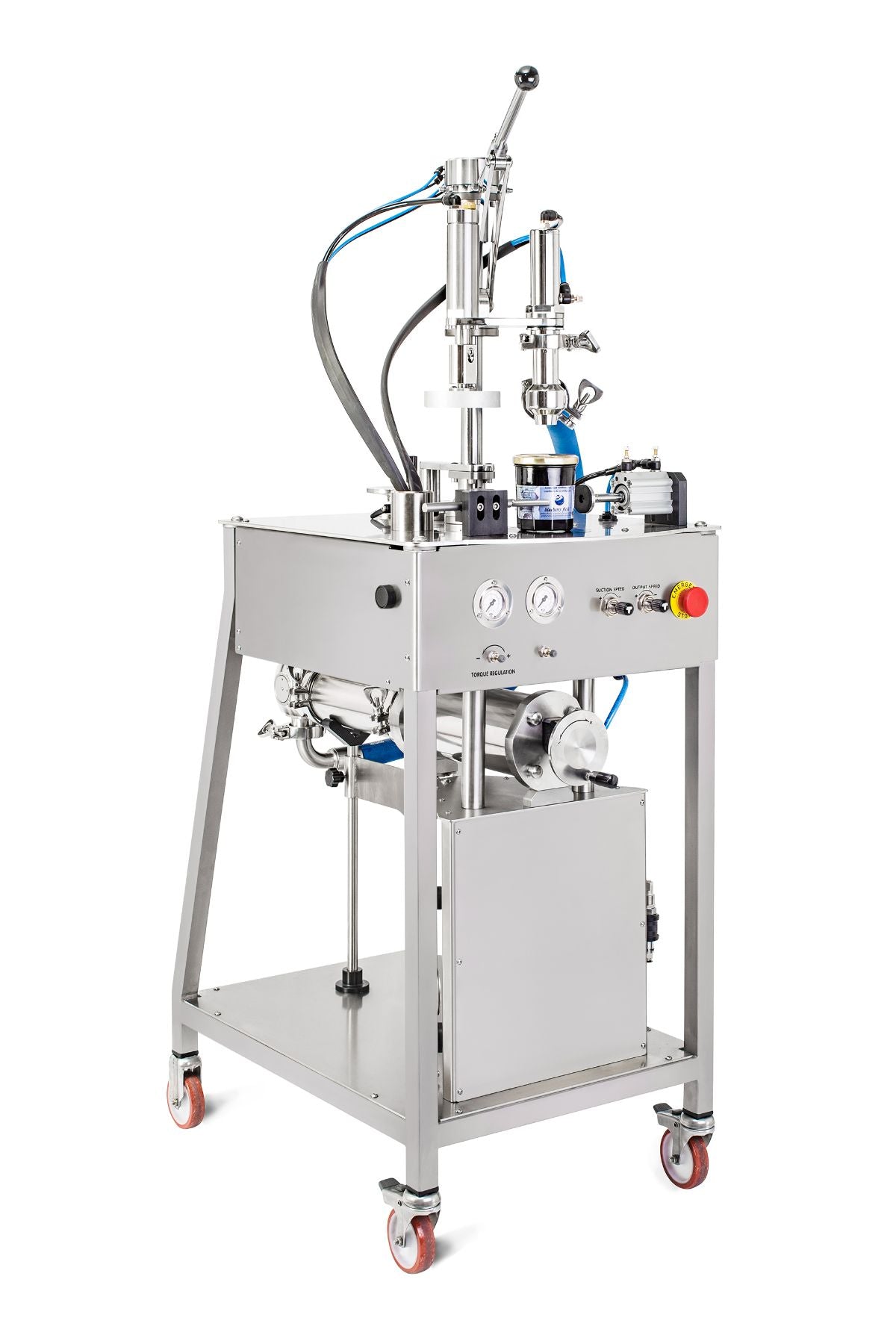

Jarselite by Tenco is a semi-automatic, pneumatically operated filling and capping system engineered for high-precision dosing of liquid, semi-viscous, and particulate-containing products into glass jars. The system integrates the Doselite volumetric dosing unit, capable of delivering adjustable fill volumes, ensuring consistent metering across a broad spectrum of product viscosities and densities.

Premium-Grade Materials

  • All components in contact with the product are manufactured from AISI 316L stainless steel, for superior corrosion resistance and full compliance with food-grade hygiene standards.
  • The structural frame is constructed from AISI 304 stainless steel, for long-term mechanical integrity and robustness in industrial environments.

Volumetric Dosing System

  • Highly accurate fill volumes from 50 ml to 1300 ml.
  • Optimised for viscous products and those containing suspended particulates.
  • Supports hot-fill operations up to 100°C.

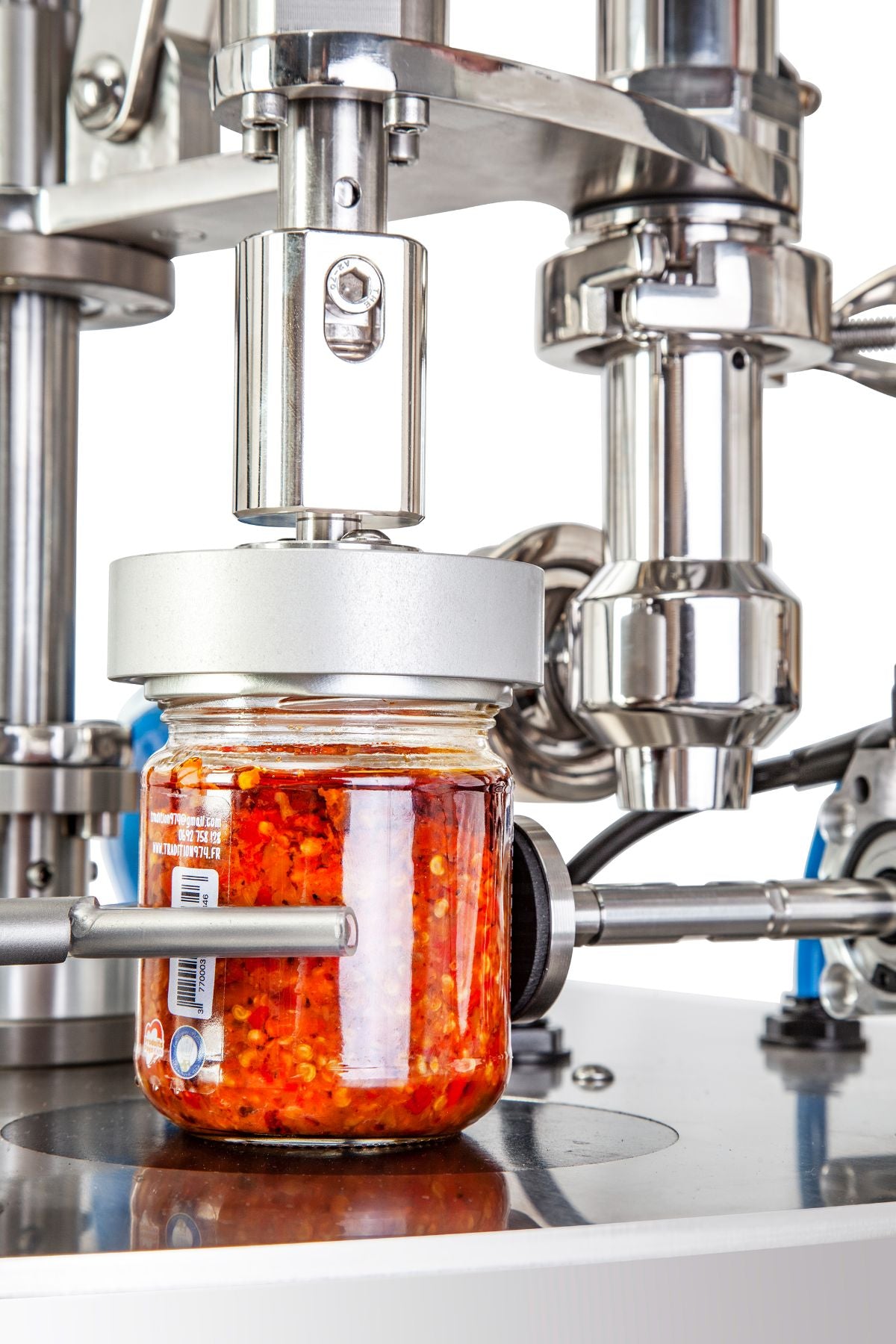

Torque-Controlled Pneumatic Capping

  • Adjustable torque settings
  • Fine-tuned torque control - minimising the risk of over-tightening or leakage.

Precision Jar Centering System

  • Pneumatically actuated centering device ensures accurate jar alignment.
  • Adjustable positioning block for various jar diameters



[Did you know that our sister company, Rawlings, supplies bottles and jars? See Glass Packaging]

Jarselite by Tenco is a semi-automatic, pneumatically operated filling and capping system engineered for high-precision dosing of liquid, semi-viscous, and particulate-containing products into glass jars. The system integrates the Doselite volumetric dosing unit, capable of delivering adjustable fill volumes, ensuring consistent metering across a broad spectrum of product viscosities and densities.

Premium-Grade Materials

  • All components in contact with the product are manufactured from AISI 316L stainless steel, for superior corrosion resistance and full compliance with food-grade hygiene standards.
  • The structural frame is constructed from AISI 304 stainless steel, for long-term mechanical integrity and robustness in industrial environments.

Volumetric Dosing System

  • Highly accurate fill volumes from 50 ml to 1300 ml.
  • Optimised for viscous products and those containing suspended particulates.
  • Supports hot-fill operations up to 100°C.

Torque-Controlled Pneumatic Capping

  • Adjustable torque settings
  • Fine-tuned torque control - minimising the risk of over-tightening or leakage.

Precision Jar Centering System

  • Pneumatically actuated centering device ensures accurate jar alignment.
  • Adjustable positioning block for various jar diameters



[Did you know that our sister company, Rawlings, supplies bottles and jars? See Glass Packaging]

View full details

Jarselite by Tenco is a semi-automatic, pneumatically operated filling and capping system engineered for high-precision dosing of liquid, semi-viscous, and particulate-containing products into glass jars. The system integrates the Doselite volumetric dosing unit, capable of delivering adjustable fill volumes, ensuring consistent metering across a broad spectrum of product viscosities and densities.

Premium-Grade Materials

  • All components in contact with the product are manufactured from AISI 316L stainless steel, for superior corrosion resistance and full compliance with food-grade hygiene standards.
  • The structural frame is constructed from AISI 304 stainless steel, for long-term mechanical integrity and robustness in industrial environments.

Volumetric Dosing System

  • Highly accurate fill volumes from 50 ml to 1300 ml.
  • Optimised for viscous products and those containing suspended particulates.
  • Supports hot-fill operations up to 100°C.

Torque-Controlled Pneumatic Capping

  • Adjustable torque settings
  • Fine-tuned torque control - minimising the risk of over-tightening or leakage.

Precision Jar Centering System

  • Pneumatically actuated centering device ensures accurate jar alignment.
  • Adjustable positioning block for various jar diameters



[Did you know that our sister company, Rawlings, supplies bottles and jars? See Glass Packaging]

Ideal for high-precision dosing of liquid, semi-viscous, and particulate-containing products into glass jars.

  • Dimensions: 1300 x 550 x 1160 H
  • Weight: 115 kg
  • Production: 400 p/h for 500 ml jar
  • Power supply: pneumatic
  • Compressed air consumption at 6 bar: 300 l/min

Tenco specialise in machinery for filling semi-liquid and liquid products for beverage, food & pharmaceutical industries. We have supplied Tenco vacuum fillers for many years and they remain hugely popular for filling both liquid & semi-viscous products. We also supply Tenco volumetric fillers for filling thick products.

Here are some of the reasons why we choose Tenco:

  • Tenco are innovators: Founder Giuseppe Tenco developed a table-top filler originally for wine manufactured with robust materials, which was easy to use and clean, which he called the 'Enolmatic'; the Enolmatic soon became the filling machine which made the name Tenco known all over the world, swiftly followed by the Enolmaster. The company expanded and began developing and manufacturing filling technologies for a very wide range of liquid, semi-viscous, and viscous products, including spirits, liqueurs, syrups, vinegar, fruit juice, oils, chocolate, jam, sauces, honey, and oils.
  • Tenco machines are designed for small and medium sized producers and are ideal for pilot product development
  • Tenco's production values remain unchanged - intelligent technology and the best materials

The range

We supply the range of Tenco vacuum fillers and Tenco volumetric fillers, all of which are semi-automatic.

Blog

Read about one particular vacuum filler in the Tenco range - the Enolmaster - in our Small scale craft bottling blog.

Tenco Video

Watch the Tenco video here

What we offer...

We have supplied Tenco fillers since 1999. We can offer you:

  • Advice on the appropriate filler for you - taking budget, desired throughput, labour, etc. into consideration
  • Comprehensive 12 month warranty, backed up by our team of Vigo engineers
  • Maintenance & full technical backup and support from our mobile engineers

Case Studies

The Case Study below represents only one of the hundreds of Tenco fillers we have supplied over the years to a variety of different drink producers:

How can we help you?

If you're looking to increase your filling capability, or you are a new start-up, please call us on 01404 892100 and we will be happy to discuss your requirements.
