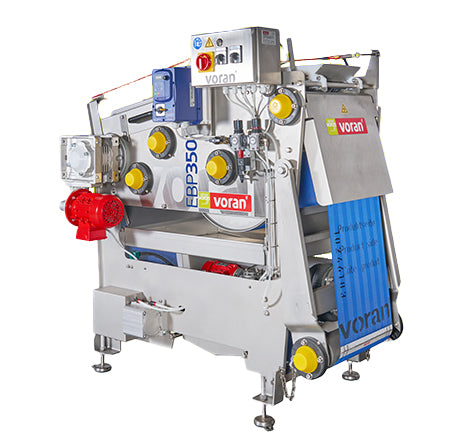

Voran EBP350 belt presses
Voran EBP350 belt presses
EBP350 belt presses are manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925.
Automatic belt presses offer a way of pressing high volumes of fruit pulp with minimal labour costs. When used with a Voran wash mill and elevator (available separately - see below), the belt press offer continuous, automatic pressing and milling of apples. Belt presses are typically used to press milled apples, but press some other fruits and vegetables - see Application for list.

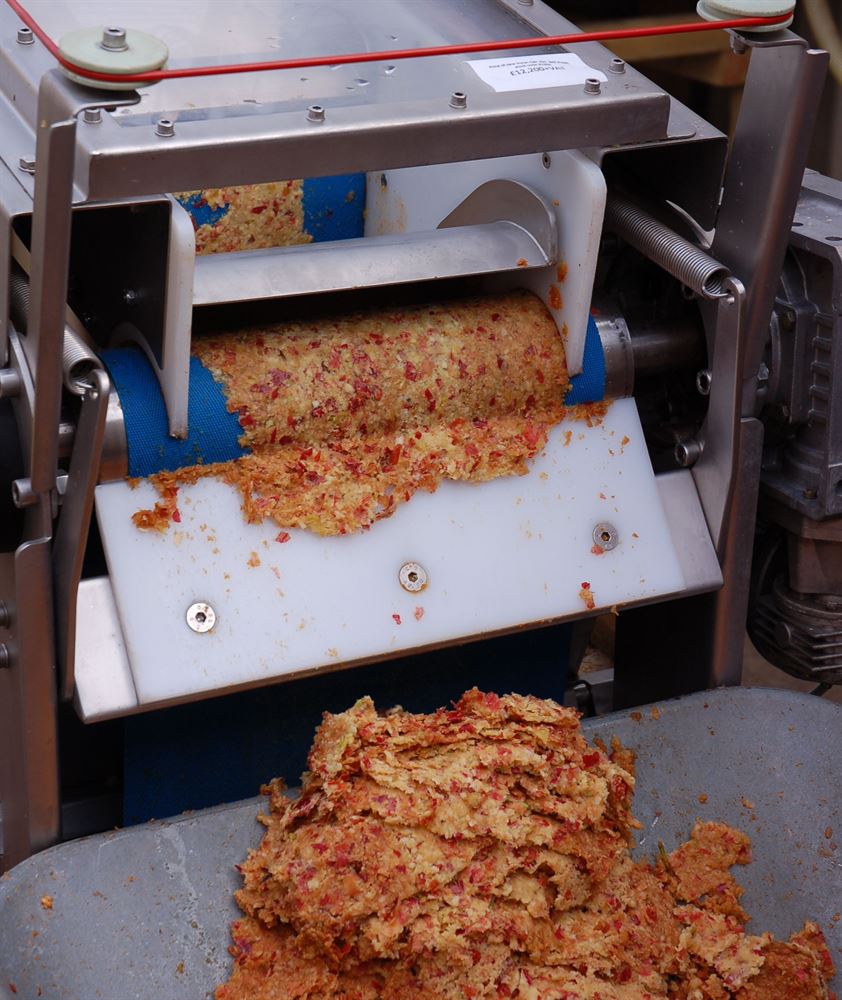

Pulp (e.g., apple pulp from milled apples) is fed continuously onto the porous belt of the belt press and pressed against a series of steel rollers, which extract the juice. Yields are comparable and, in some cases, higher than those achieved by hydraulic presses. Using a belt press gives a short pressing time and leads to minimal air contact. The quality of the juice is usually very high as a result, with minimal solid content.
- Presses up to 300 kg of apple pulp per hour
- Up to 70% juice yield, depending on fruit variety and quality
- Very compact
- Single or 3 phase models available

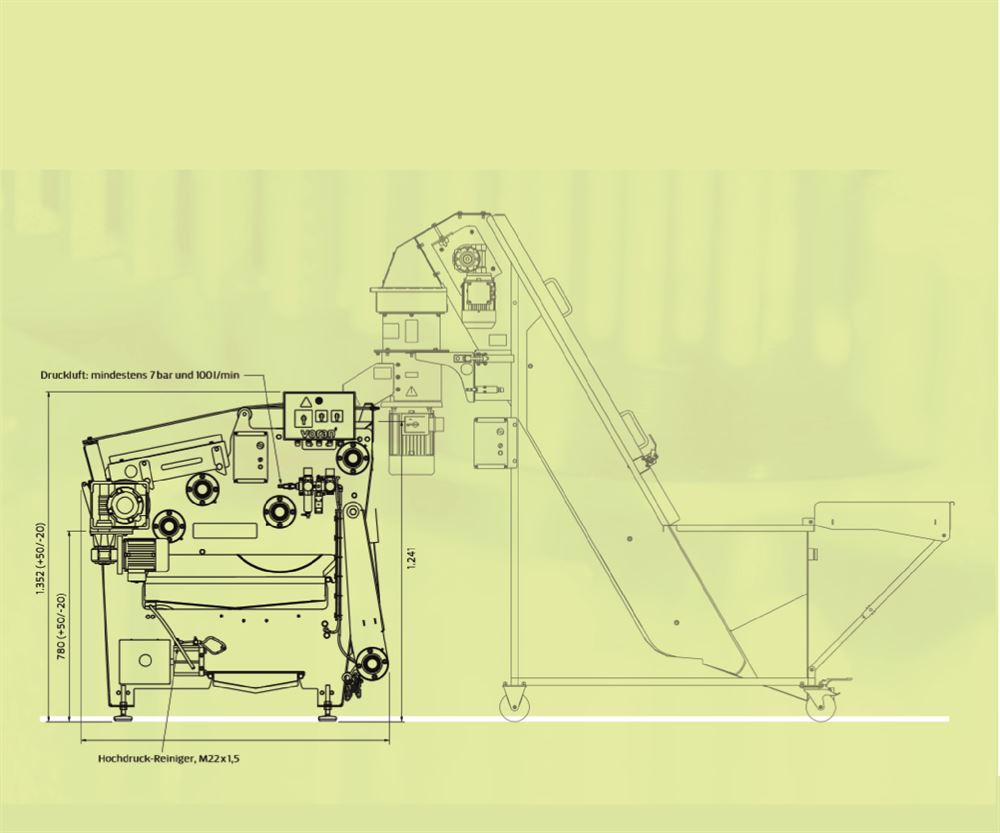

- Use with the Voran SA Wash Mill with Elevator
- Comprehensive 2 year warranty, backed up by our engineers
Please contact us on 01404 892100 to discuss your pressing requirements.
Installed & commissioned by our Engineers.
Ideal for use with the Voran Juice Collection Tank for Belt Presses.
Please see the 'Voran' tab below for customer Case Studies.
Please contact us on 01404 892100 to discuss your pressing requirements.
NB You can order online a spare belt for this press - please see the Spares category in Catalogue and Refine by 'Type'.
For accessories, please see our PPE & Tools categories in Catalogue.
Please see the Apples - Presses categories in Catalogue for our full range of presses.
Please see Mills - Apple for our range of mills.
