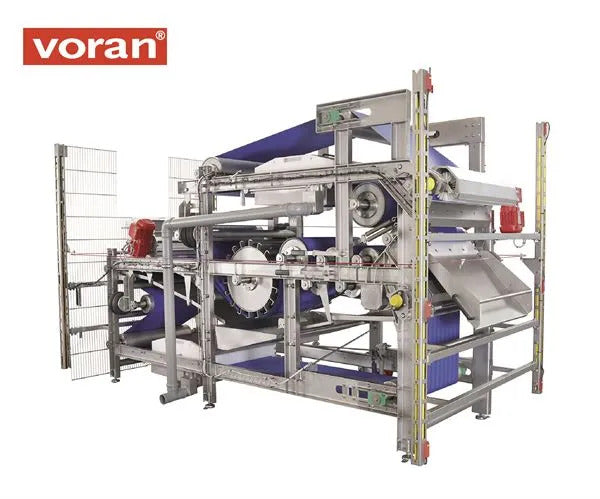

Voran ZBP660 Twin belt press
Voran ZBP660 Twin belt press
The ZBP660 twin belt press is one of the latest presses manufactured by internationally renowned Voran, suppliers of fruit processing equipment since 1925.
Automatic belt presses offer a way of pressing high volumes of fruit pulp with minimal labour costs. When used with a Voran wash mill and elevator (available separately - see below), the belt press offer continuous, automatic pressing and milling of apples. Belt presses are typically used to press milled apples, but press some other fruits and vegetables - see Application for list.
Pulp (e.g., apple pulp from milled apples) is fed continuously onto the porous belt of the belt press and pressed against a series of steel rollers, which extract the juice. Yields are comparable and, in some cases, higher than those achieved by hydraulic presses. Using a belt press gives a short pressing time and leads to minimal air contact. The quality of the juice is usually very high as a result, with minimal solid content.
- Presses up to 3,000 kg of apple pulp per hour
- Twin belt system gives juice yields of up to 80%, depending on fruit variety and quality
- Use with the Voran WAR 65 Wash Mill with Elevator
- Comprehensive 2 year warranty, backed up by our engineers
Installed & commissioned by our Engineers.
See the 'Voran' tab below for customer Case Studies.
Please call us on 01404 892100 to discuss your pressing requirements.
Please see the Mills - Apple category for our full range of apple mills.
Please see the Presses - Apple category for our range of apple presses.
For accessories, please see our PPE & Tools categories in Catalogue.
