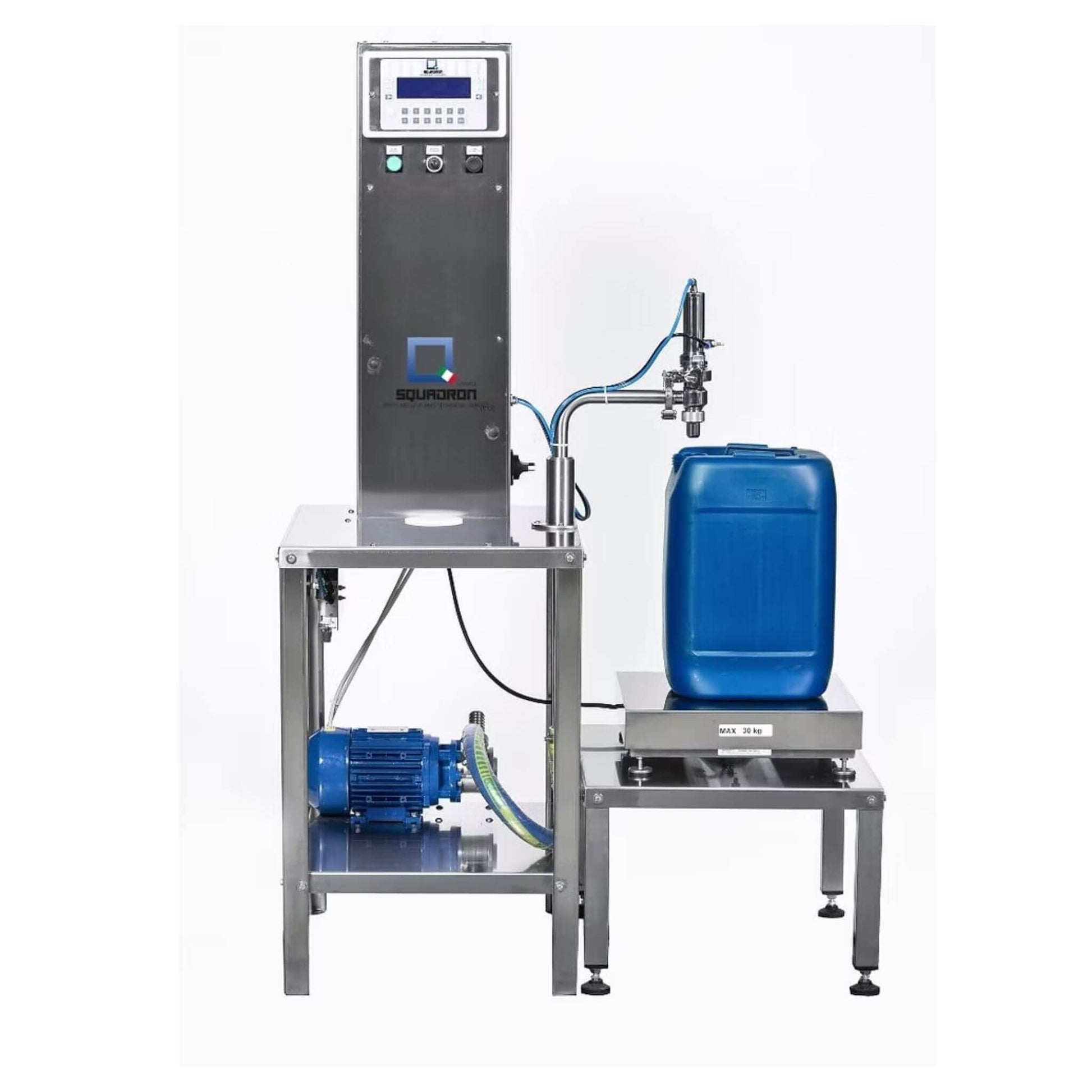

Weight Filler
- Suitable for bottles, cans and jerrycans from 50 CL to 10 L
- Filling range: 0-12kg with automatic weight correction
- CE-approved scale with automatic tare at start
- AISI 304 stainless steel frame
- New program with 8 visible codes
- Product-contact parts in AISI 316 stainless steel
- Electromechanical valve (AISI 316) with adjustable filling speed
- Automatic management of the filling cycle via PLC with graphic display (included)
- Multi-format configuration with storable programs
- Flexible suction and delivery hose certified FOOD OILMILL
- Ā½ā electromechanical valve in AISI 316 stainless steel
- No. 1 nozzle for 21/13 bottles or 18/10 mignon bottles
- No. 1 large nozzle 25/15 for 2/3/5 L cans
- Scale platform with mechanical format stop
- Additional formats can be stored
- Weight: 65 kg
- Suitable products: olive oil & related products, motor oil, demineralized water, fertilisers
Max speed: approx. 90 cans (5L)/hour
Also available on request in a 30 kg version, offering two weighing ranges: from 0 to
15 kg with 5 g resolution, and from 15 to 30 kg with 10 g resolution. This machine is
particularly recommended for filling operations ranging from a minimum of 100 ml
up to a maximum of 25 kg.
Ā
- Installed and commissioned by our Engineers
- 1 year warranty
Please call us on 01404 892100 to discuss your filling requirements.
